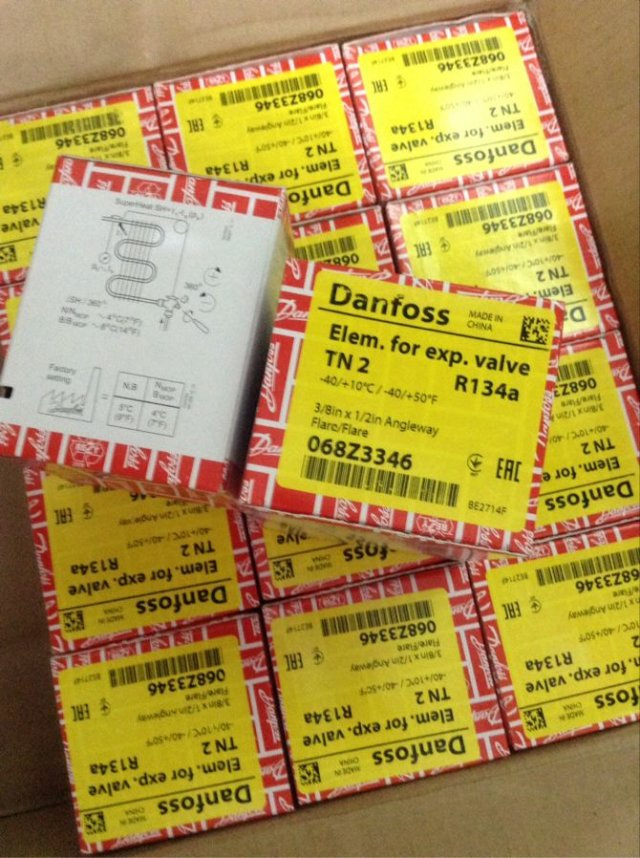

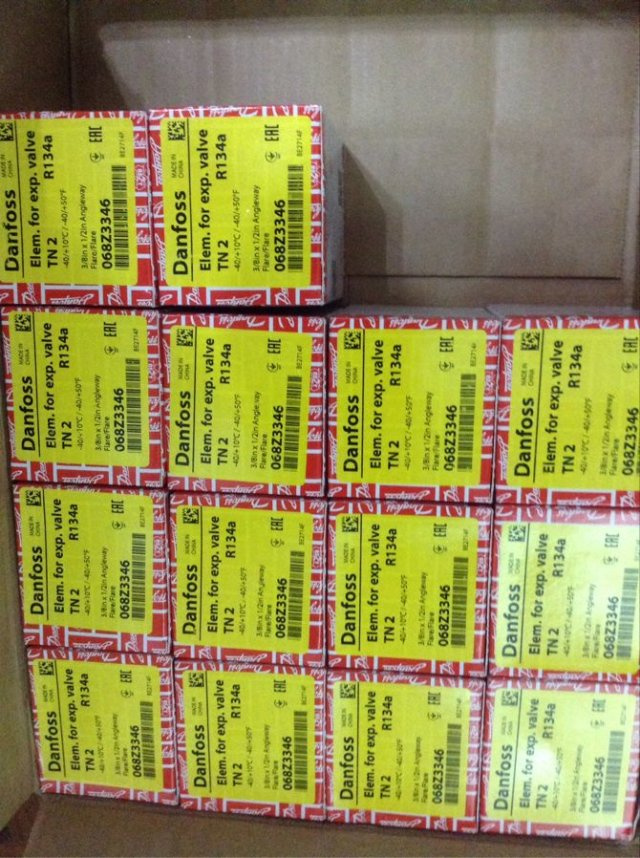

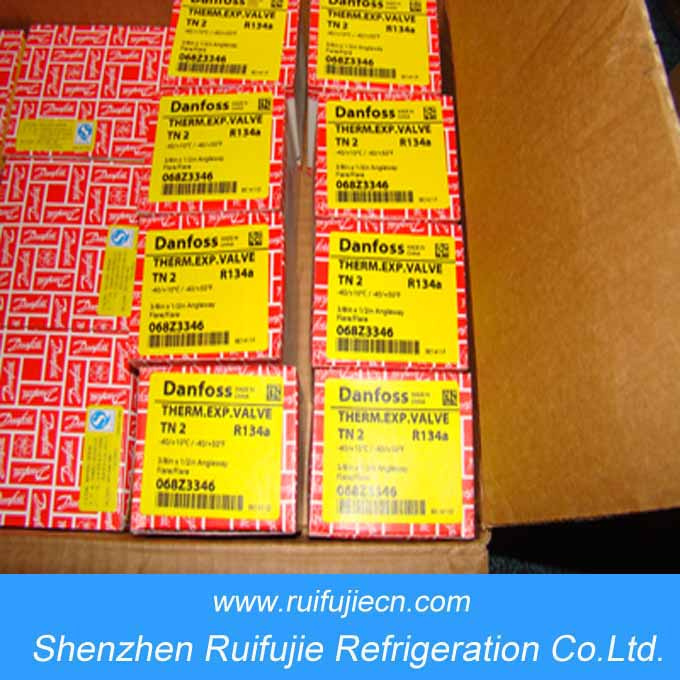

(TN2 SERIES) Danfoss Expansion Valve
Product Description
T 2/TE 2 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants. T 2/TE 2 is supplied with an interchangeable orifice assembly for easy stocking and service.
Product Features
- TN 2/TEN 2, flare/solder, R134a, element / valve body Angleway valve body, inlet size 3/8 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar. Equalization connection size, TE 2, flare/solder, versions with mm-connections: 6 mm, versions with in.-connections: 1/4 in.
Danfoss thermostatic expansion valves( TN2 SERIES)
Refrigerant: R22, R407C, R134A, R404A/R507, R12, R502
Thermostatic expansion valve regulate the flow of refrigerant liquid into the evaporator.
The flow is controlled by the valve.
The thermal bulb senses the evaporator heat and adjusts the valve to admit refrigerant liquid in accordance with the refrigerating load.
| Brand: | Danfoss |
| Colour: | - |
| Connection Size: | - |
| Connection Type: | Flare/Solder |
| Length (M): | - |
| Material Type: | Brass |
| Model Number: | TN 2 |
| Nominal Running Current (A): | - |
| Operating Temperature: | - |
| Pressure: | - |
| Voltage: | - |
| Warranty: | 1 Year |
| Phase: | - |
| Refrigerant Suitability: | R134a |
| Valve Connections: | 3/8 x 1/2 |
| Defrost: | - |
| Evaporator Fans: | - |
| Cable Length (mtr): | - |
| Refrigerant | Model | equalizer | Capillary | Connection size | code |
| inlet×outlet | N series
-40+10 | N series
-40-5 | NL series
-40-15 |
| m | in.×in. | mm×mm | Without mop | With mop | Without mop | With mop |
| R22 | TX 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3206 | 068Z3208 | 068Z3224 | 068Z3226 |
| TEX 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3209 | 068Z3211 | 068Z3225 | 068Z3227 |
| R134a | TN 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3346 | 068Z3347 | 068Z3393 | 068Z3369 |
| TEN 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3348 | 068Z3349 | 068Z3392 | 068Z3370 |
R404A
/R507 | TS 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3400 | 068Z3402 | 068Z3406 | 068Z3408 |
| TES 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3403 | 068Z3405 | 068Z3407 | 068Z3409 |
| R12 | TF 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3202 | 068Z3236 | 068Z3220 | 068Z3222 |
| TEF 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3204 | 068Z3237 | 068Z3221 | 068Z3223 |
| R502 | TY 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3212 | 068Z3214 | 068Z3230 | 068Z3232 |
| TEY 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3215 | 068Z3217 | 068Z3231 | 068Z3233
|
