Home Valve Products Toilet Components Fill Valve for Ceramic Plastic Cistern IV2026p

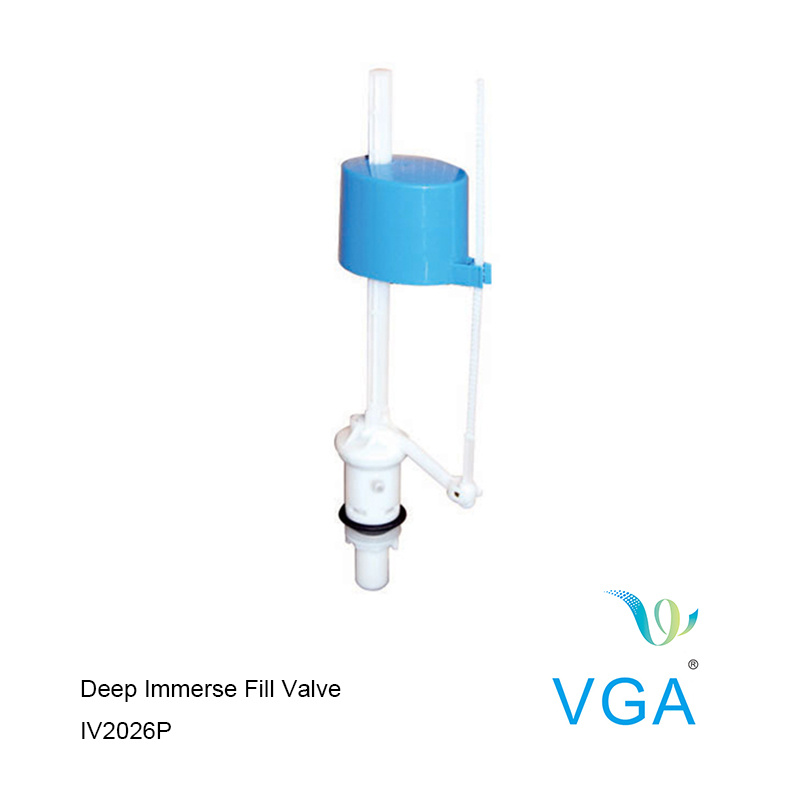

Toilet Components Fill Valve for Ceramic Plastic Cistern IV2026p

Toilet Components Fill Valve for Ceramic Plastic Cistern IV2026p
Price: US $ 1-3/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
It's easy to install, easy to use, easy to adjust, easy to maintain and universal use.This bottom entry toilet water tank fill valve, come from VGA® a professional sanitary ware parts replacement manufacture from Xiamen China.

It's made from anti-corrosion POM plastic for longer product life,   it's an ideal corrosion-resistant replacement for outdated or broken valves.

With different thread gauge (3/8", 1/2", 15/16"), and different material for inlet thread (plastic, brass), with different type of thread adapter available, the height of this fill valve is customizable .


It fits most tanks.


It can match many type of toilet flush mechanism: dual flush valve, single flush valve, flapper flush valve, cable control flush valve, etc.

With adjustable float to save water. Anti-siphon mechanism, with backflow preventer guards against toilet water contamination of fresh water supply. It's quiet, provides fast, positive shut-off.

·

Height:

         1, Adjustable

         2, Customizable to meet your requirement exactly

Water Level Adjustment:

         1,Tool free adjustment rod for Water float adjustment
         2, Float can be adjusted between 0-45mm.
         3, Water level can be adjusted by moving the float up
             and down.

         4, Adjustable valve height
         5, Compact design, more suitable for low toilet
         6, Suitable for different tanks.
         7, Easy adjustment to achieve ideal water level
         8, Easy to adjust to proper fit and most efficient flush
             volume


Material:

         1, POM , anti-corrosion POM for longer endurance
·
Inlet:

         1, G1/2", G3/8", G15/16"
         2, Available models with different inlet sizes
         3, Different materials:
             Brass screw connector
             Plastic screw connector

Performance:

         1, Single float can shut off the water flow
             instantaneously.

         2, Back pressure design for quicker close
         3,  Silent filling, Membrane design. Low inlet noise. .
         4, Stronger pressure endurance.
         5, The anti-impurity design is suitable for impure
             water area

         6, Easy clean inside filter to guard the valve from
             impurity.

         7, Special design, easy for cleanness and replacement.
         8, Effective to filtrate the dirt water and easy to clean.
         9, Anti-siphon design prevents contamination of fresh
              water supply, prevent water back flow.

         10, Working pressure: 0.015Mpa~2.0Mpa
         11, Water level remains the same even if water
               pressure is varied.

         12, Filling speed: 4.8L/Min
         13, 0~30% re-fill rate with adjustable rectifier.

Quality Control:

         1, All the products are inspected piece by piece
         2, Five year quality guarantee
         3, Whole process quality control to ensure high and
             consistent quality

·
·
Mounting type:

          1, screw lock

·
Certificate:

          1, CE
          2, WRAS
          3, CQC
          4, ISO9001:2008
          5, SGS

·
Trade Mark:

             VGA®
·
Packing:

          1 PC/PE bag, 36PCS/CTN

·
HS code:

         3926909090

Prod Model: IV2026P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tank Material: Ceramic
Structure: One Piece
Using Type: Button
Inlet Valve: Bottom Inflow
Drain Valve: Double Pressing
Type: Lower Cistern
Usage: Squatting Pan
Wall Mounted: Wall hanging
Button Diameter: 50MM
Warranty: 5 Year
Certification: Wras
Xiamen Weijia Industry & Trade Co., Ltd is a professional manufacturer specialized in the development, design, production and sales of toilet tank fittings and other bathroom hardware. We are making our great efforts to explore and research water-saving products, to create a more healthy, comfortable life to our customers.

Our main products are Toilet Tank Fittings: Different kinds of Fill Valve and Dual Flush Valve and other Toilet Fittings.

The whole production line is approved by ISO9000-2008, ESC Certification & Testing Service Ltd(CE ) and CQC. All products made in Weijia are strictly designed comply with PSP (Singapore), NF (Europe), UPC (America), CSA (Canada), AS (Australia) and JC987-2005 standard. Meanwhile, products are inspected piece by piece to ensure quality. So, we can promise 5-year quality guarantee and offer sufficient and strong faith to all our customers. We would like to meet diversified needs of all our customers from both the domestic and overseas markets.

Satisfaction of our customers is our success. WEIJIA expects to become the most sincere fellow member of you. For more details, contract us today.
