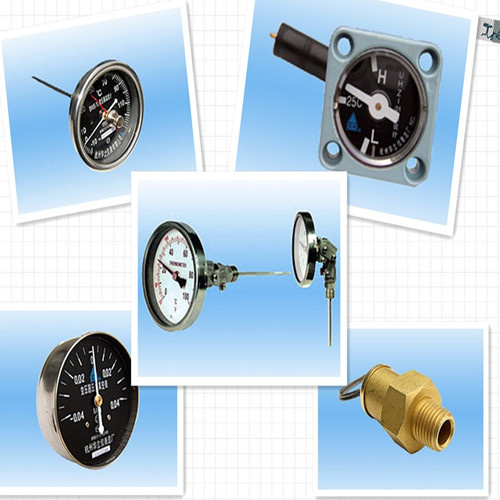

Transformer Thermometer; Transformer Vacuum Manometer; Oil Level Gauge; Pressure Release Valve

Transformer Thermometer; Transformer Vacuum Manometer; Oil Level Gauge; Pressure Release Valve
Price: US $ 200-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
   The BWS-70 Transformer Thermometer is designed to indicate the oil temperature of a transformer. This gauge has the features of sensitivity, clear reading, simple structure and high reliability, etc. The case of the gauge is made of stainless steel, so it has fine-looking appearance and long service life.
The YZ-70 vacuum manometer is a special attachment to a padmount power transformer. It can directly reflect the pressure changes in a transformer due to the temperature changing, hence for users to monitor the running of transformer.
The UHZ Oil Level Gauge is designed to indicate the oil level of either an small or medium oil-immersed transformer. Compared to a glass gauge, the UHZ has the features of safety, direct-viewing, reliability, longevity, etc.
The YSF Pressure Release Valve is designed to protect transformer tank against excessive pressure in it. Once the pressure in the tank reaches the release pressure, the valve will open automatically in an instant to release the gases until the pressure drops under the release pressure. In addition, whenever necessary, users are allowed to open the YSF by pulling its hoop out to reduce the pressure.
Main Technical Parameters:
BWS-70 Transformer Thermometer:
    1, Ambient temperature measuring rage: (-10~130)
    2, Accuracy: 2.5grade
    3, Ambient temperature: (-40~+55)
    4, Pressure: 1.6 MPa
Products Introduction:
   BWS-70 Series
YZ-70 Vacuum Manometer
    1, Indicating range: (-0.04~0.04) MPa (determined by consumer)
    2, Accuracy: 2.5 grade
    3, Ambient temperature: (-40~80), Ambient humidity: ≤80%
    4, Dial diameter: φ70
    5, Joint: M27×2 adjustable screw
Products Introduction:
UHZ Oil Level Gauge
    1, Ambient temperature: (-40~80)
    2, Ambient humidity: ≤90% at T=25
    3, Altitude: ≤2000m
    4, Neither sharp shake nor high magnetic-field around the mounting position
    5, Be mounted perpendicularly to the tank
Products Introduction:
   UHZ-01 Oil Level Gauge
YSF Pressure Release Valve
    1, Standard Release Pressure:
P=0.03±0.01Mpa: P=0.06±0.01MPa
Note: Other models with specified release pressure are also available on demand
    2, Standard Mounting screw: 1/4 18NPT
Note: Other mounting screws are also available on demand
    3, Ambient temperature (-40~80),Ambient humidity <95%
Products Introduction:
   YSF Pressure Release Valve
Measuring range

inserted depthL=50~2500mm
Protective tube
diameter (mm)
structureAxial\radial\(135)angle  of view\flange
mounting screwM27×2
accuracygrade 1.5
contact capacity220V load without induction 10VA
Prod Model: BWS-70
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Constant Voltage Signal: (0-5)V (1-5)V
Indicative Accuracy: Direct Current Signal
Communication Interface: RS232 or RS485
Certification: ISO
Type: Temperature Controller
Control Type: Digital
Material: Stainless Steel
Usage: Transformer Temperature Controll
Ningbo Ville Electric Co., Ltd. is a company specialized in research, development and production of transformer and high voltage & low voltage electrical power equipment.

It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in turnkey project contractor of power substation, power plant project and electric power complete equipments.

Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products.

Products application:

Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.

We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.

In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier"
