Offset Butterfly Valve

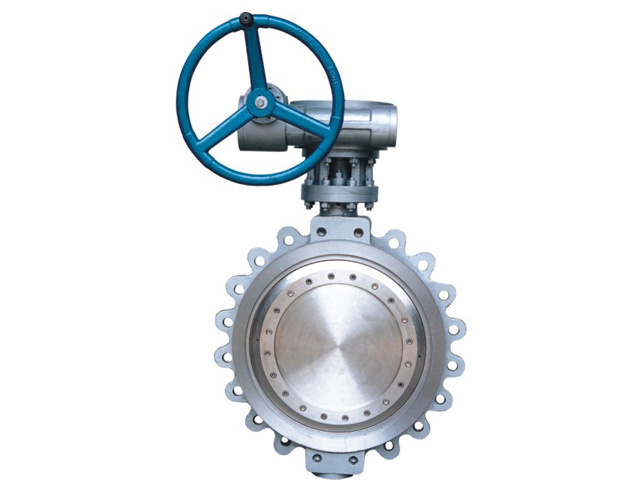

Valve body and valve seat of tri-eccentric hard sealing butterfly valve are combined component. Build up weld temperature, corrosion resistant alloy material on the valve seat sealing surface layer.
Tri-eccentric: The centerline of shaft offsets centerline of the sealing surface, the shaft centerline is slightly deviated from centerline of the pipeline, and centerline of valve body sealing face (oblique circular cone) and centerline of pipeline form an angle of β .
The multi-layer sealing ring is fixed on the valve plate with advantages of high temperature resistant, easy operation, friction free opening and closing, and compensate sealing with increasing torque of transmission gear during closing to improve sealing performance and increase service life of butterfly valve.
The multi-layer sealing ring is made of soft and hard laminated sheet metal. It has advantages of both of metal hard seal and soft seal. Sealing performance of zero leakage is guaranteed in low and high temperature.
Product Description
Design Standard: API 609
Face-to-Face & End-to-End Dimension: API 609
Flange Connection End: ASME B16.5 & ASME B16.47
Wall Thickness: ASME B16.34
Inspection & Test: API 598
Pressure & Temperature Rating: ASME B16.34
Fire Resistance test: API 607
Size: NPS 3~48
Pressure Rating: Class 150~600 Lb
Body Material: WCB, LCB, WCC, WC6, WC9, CF8, CF8M, CF3, CF3M, A890 4A etc
Drive Device: Handle, Worm Gear, Electric, Pneumatic, Hydraulic etc
