Applicable Standards:
Design & Manufacture according to : API 609
Face to Face according to : ASME B16.10
Flange Dimensions according to : ASME B16.5
Pressure & Temperature according to : ASME B16.34
Test & Inspection according to : API 6D / API 598
Visual Inspection according to : MSS SP-55
Marking according to : MSS SP-25
Main features:

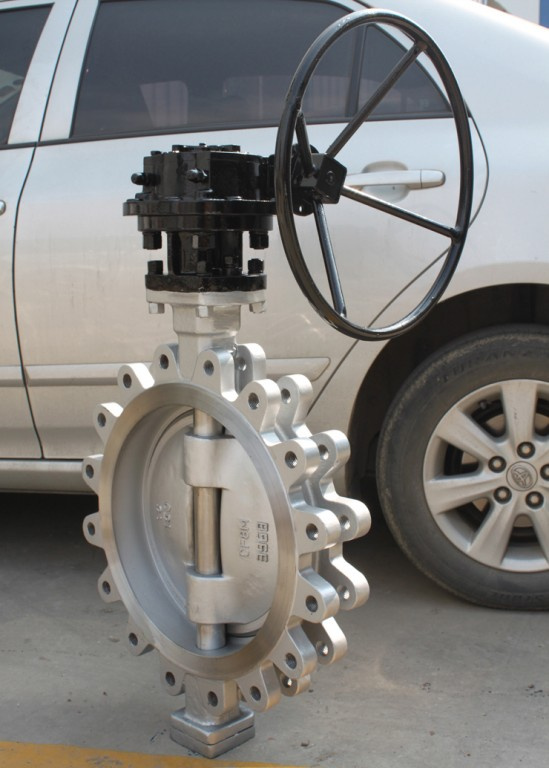

Body structure: Triple eccentric / triple offset
Construction: Multi layer disc sealing
Bore: Full bore
Connection: Fully lugged
Seat: Integral to body
Material Option:
Carbon steel | A216 Gr. WCB , WCC , WCA , etc |
| Low temperature steel | A352 Gr. LCB , LCC , LC1 , etc |
| Cr-Mo steel | A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
| Stainless Steel | A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
| Alloy steel | CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
| Super duplex | A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
| Aluminum bronze | B148 C95500 , C95600 , C95800 , etc |
| Monel | M30C , M35-1 , CZ100 , etc |
| Inconel | CY40 inconel 600 , etc |
| Hastelloy | CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
| Incoloy | CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
