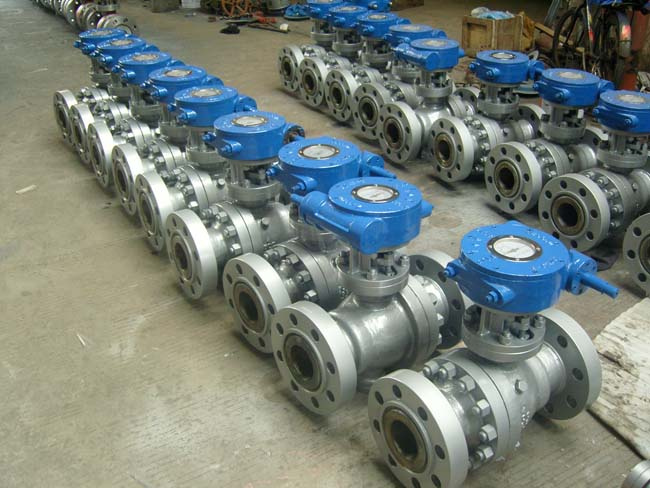

Trunnion Ball Valve

Trunnion Ball Valve
Price: Negotiable
Min Order: 1
Name: Ball valves

Standard Compliance
1) Design and manufacture standard: API 6D
2) Test standard: API 598
3) End connection standard: ASME B16.5
4) Face-to-Face standard: ASME B16.10

Specifications
1) Class: 900LB-2500lb
2) Size: NPS 2"-36"
3) Body material: WCB, WC6, WC9, ASTM A105, ASTM A182 F304, LF2, F316, F51 etc.

Feature:
1) Double block and bleed
2) Anti-static structure
3) Anti-blowout proof stem
4) Fire safe design
5) Emergency sealent injection in stem and seat
6) Vent valve and drain valve are optional
7) lifting lugs are optional
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Jiangshu Chengyi Valve Co., Ltd. is Located in Lianyungang Guannan Industrial Zone, Jiangshu Provice. Our factory covers 35000 square meter, staff 206, 16 persons for Engineering and technical. At the same time. We have numerical control, large lathe, special metal-cutting machines and quality inspection service and so on all 150 units. They could reseach, design, develop, manufacture and inspect valves. Especially, we obtain API, GE, TS and so on certificates. While initiating all-round CAD in production.

We mainly produce gate valve, butterfly valve, ball valve, globe valve, check valve, filter and other 50 serials. We produce valves according to ISO, API, BS, DIN, JPI, GB, JB, standards with diameter range: NPS1/2"-56, DN15-2600mm, pressure range: Class 150Lb-4500Lb, PN 0.1Mpa-700Mpa, and temperature range: -196 - 680degree Celsius. They are made of such material as carbon steel, alloy steel, stainless steel, titanium, Monel, alloy 20 and so on. We could provide valve according to our clients' material.

Our products are reasonable structure, Unipque technical exquisite, complete specification, relible quality. Our products have been wideli used in industrial pipeline matched for petroleum, chenical industry, metallurgy, electric power, military industry and projects.
