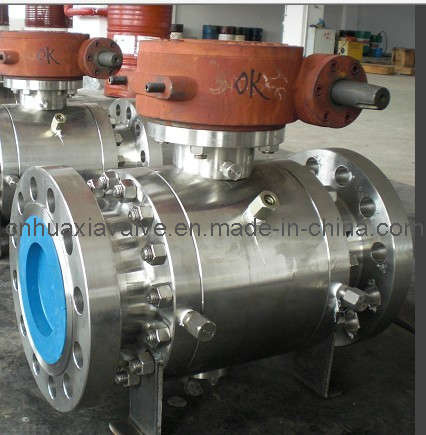

Trunnion Mounted Ball Valve

Trunnion Mounted Ball Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Characteristics

No leakage on middle flange, lockable device, Fire-safe, Antistatic and blow-out proof stem functions, with handle indicated the states of valves, unique seat seal &stem seal structure. Side Entry, Floating Ball, Full or Reduced Port, Anti- Fire Safe and Anti-static device, Free leakage of body Sealed construction, Low torque in operation, Automatic body cavity relief.
Design Standard API 6D, API 608, ANSI 507, BS 6364, MSS SP-72, ASME B 16.34, BS5351, BF CI 70-2, ISO 5211.
Face to face standard ASME B 16.10, ISO 5752, BS 12982, BS 558.
Connection standard API 605, ASME B 16.47, MSS SP-44, ASME B 16.11,   BS 12760, ISO 7005-1, ASME B 16.5, BS 12627, ASME B 16.25-2007, JIS B 2238
Testing  Standard API 6D, BS51646, MSS SP-82,   API 607, MSS SP-61, BS 12569, API 6FA, BS 6755, API 598.
Pressure Rating Class 150 LB - 1500LB
Size NPS2" -48"
Material WCB, LCB, LCC, A105, CF8, CF8M, CF3, CF3M, F304, F316, F304L, F316L, LF2, or Equivalent.
Ball Coating: ENP, Tungsten Carbide Coat (TCC), Chrome Carbide Coat (CCC) etc.
Actuator Handle, Worm gear, Pneumatic, Electric
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1/2"-12": 150lb-2500lb
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Zhejiang Huaxia Valve Co., Ltd. A professional manufacturer of valves and pipe fittings integrating R&D, design, production and sales services. Incepted in 1982, it has been recognized as China Hi-tech Enterprise, implementation unit of State Torch Program. It is also a member unit for designated supply of China Petrochemical Corporation and China National Petroleum Corporation.
It has five manufacturing plants with total floor coverage of 56, 800 square meters and building area of 35, 000 square meters. Huaxia is equipped with sophisticated machining center, CNC lathe and metal cutting processing equipment, physical and chemical test, spectral analysis and valve all round properties testing equipment, as well as provided with valve micro leakage detection capability. Its dominant products include ball valves, butterfly valves, gate valves, flatplate gate valves, globe valves, check valves, sanitary butterfly valves, ball wedge needle valves and Extrude Pipe Connecting. Valve size: 1/4"~68"(DN6~DN1800). Pressure rating: 150LB~2500LB, PN6~PN42. Temperature range: -196~850Celsius. Standards: API, DIN, BS, EN, ANSI, GB. Material: Carbon steel, stainless steel, alloy steel, Monel alloy, low temperature steel and other special steel boby. Driving means: Manual, gear rotary, electric pneumatic, hydraulic.
Mainly exported to USA, Europe, Middle East. Africa and Singapore, products deeply favored by them. The company is actively implementing distribution system and hsa set up sales offices in Beijing, Shanghai, Shandong and Xi'an, enabling fast product delivery for customers and serving them as soon as possible.

The company pays great attention to product quality and has past ISO9001-2008 quality system certification, EU CE/PED certification, API6D, API607 and TS certification. It is provided with sophisticated production facilities, engineering department, production control department, quality control department for coordinated valve manufacturing and ensuring the development speed and quality of new products. It also ensures quality control for each round from design, raw material, production, inspection, exwprks to customer services, realizing fast product delivery.

Zhejiang Huaxia Valve Co., Ltd. mainly produces the products, materials, and the implementation of the following criteria:
1. Product Type: Ball valves, butterfly valves, gate valve, globe valve, check valve, flat gate valve, cryogenic valves (gate valve, globe valve, check valve, ball valve -196Celsius), sanitary valves and fittings, etc.;
2. Executive Standard: American Standard (API), German standard (DIN), International Standard (ISO), GB (GB), British standard (BS), etc.;
3. Material: WCB (A105), LCB (LF2), C5 (F5), WC6 (F11), WC9 (F22), CF8 (F304), CF8M (F316), 4A (F51), 5A (F53), 6A (F55), CK3MCUN (F44), MONEL, INCONEL (625, 825), 20 alloy, aluminum bronze (B148 C95500, C95400), etc.;
4. Nominal diameter: 1 / 2 "--- 56" (DN15-DN1400);
5. Nominal pressure: CLASS 150---CLASS 2500 (PN16-PN420),
6. Operating temperature: -196 --- 650 Celsius;
7. Uses: Petroleum, natural gas, oil refining, chemical, power plants, ships and other conditions, Founder of the company's operating criteria: Integrity first, customer-oriented.

Zhejiang Huaxia Valve Co., Ltd. Advantages:
1. High quality management system, create a high quality product.
2. Leading production management system to ensure the fastest completion for the shortest delivery.
3. With powerful competitive prices.
