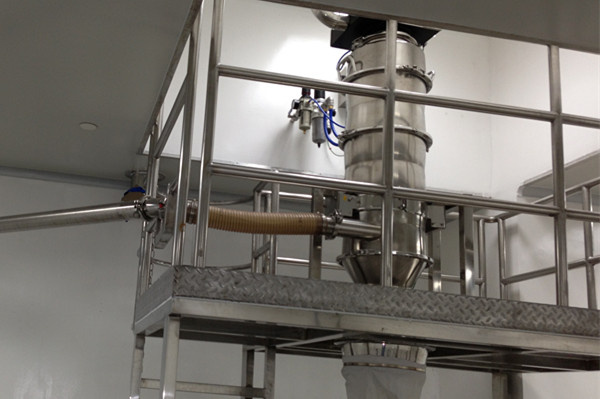

Tsvc Automatic Vacuum Conveyor

Tsvc Automatic Vacuum Conveyor
Price: US $ 1/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Vacuum conveyor is a kind of compressed air, driven by vacuum generated by the vacuum pump, and by means of vacuum suction to transmit granular and powdered materials transportation equipment, widely used in pharmaceutical, food, chemical, ceramics, feed, paint, dye, the agricultural production and scientific research.

Features:
A, simple in structure,
B, covers an area of small
C, airtight transportation pollution-free
D, using compressed air source, noise is small
E, high efficiency, high reliability

Principle:
1. In the compressed air, driven by multi-stage jet vacuum pump. Inside the vacuum pump has no moving parts, no lubrication and maintenance, additional generating heat;
2. The bottom of the discharge valve closed, while powder bunker and produce vacuum inside pipeline;
3. Under the effect of vacuum, the materials by powder bunker through a pipeline and inlet inhaled powder bunker;
4. The filter well stop powder and particles into the vacuum pump and send out into the atmosphere, to be transported materials and gas separation;
5. At the same time of conveying material, filling compressed air to blow air bags;
6. When absorbing material time to set parameters, vacuum pump automatically stops running, the bottom of the discharge valve is opened, conveying equipment inside and outside pressure balance, material falling to discharge location. Back at the same time, the compressed air release inside the balloon, produce pulse air flow and vibration type, automatic cleaning adhesion in the powder particles on the filter;
7. When discharging time to set parameters, vacuum pump to work again, to start
A new round of cycle. The whole transport process, the suction and discharge time by pneumatic or electric control of controller (not shown).
Model NO.TSVC
Transmission capacity100-2000kg/h
weight30kg
Temperature-10 º C ~ +45 º C
 MaterialsSUS304
Surface treatmentsand blasting
Protection gradeP65
Power supplySingle phase AC100 ~ 120V, Single phase AC200 ~ 240V

Prod Model: TSVC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: Tsvc
Transmission Capacity: 100-2000kg/H
Weight: 30kg
Temperature: -10 O C ~ +45 O C
Materials: SUS304
Surface Treatment: Sand Blasting
Protection Grade: P65
Power Supply: Single Phase AC100 ~ 120V, Single Phase AC200 ~ 24
Exhauster Method: Entrapment Vacuum Pump
Structure: Reciprocating Vacuum Pump
Welcome to e-mail consultation! !

TRUSTAR is a high-tech enterprise specialized in the integration of industrial weighing system and industrial automation system. It aims to provide convenience, easy access and better customer experience. Capable of design, production, installation and commissioning, TRUSTAR provides a complete weighing solution that covers bunker weighing, continuous metering, weighing and proportioning, constant feeding, pneumatic conveying and dynamic inspection, with a view to helping customers reduce the waste of materials, improve product quality, save manpower, lower dust pollution and enhance the production efficiency and the level of automation throughout their production plants. TRUSTAR is willing to have in-depth communication with all customers to know and understand their needs and requirements in weighing. TRUSTAR will always strive to offer the most suitable and effective solutions and the best services to all users.
