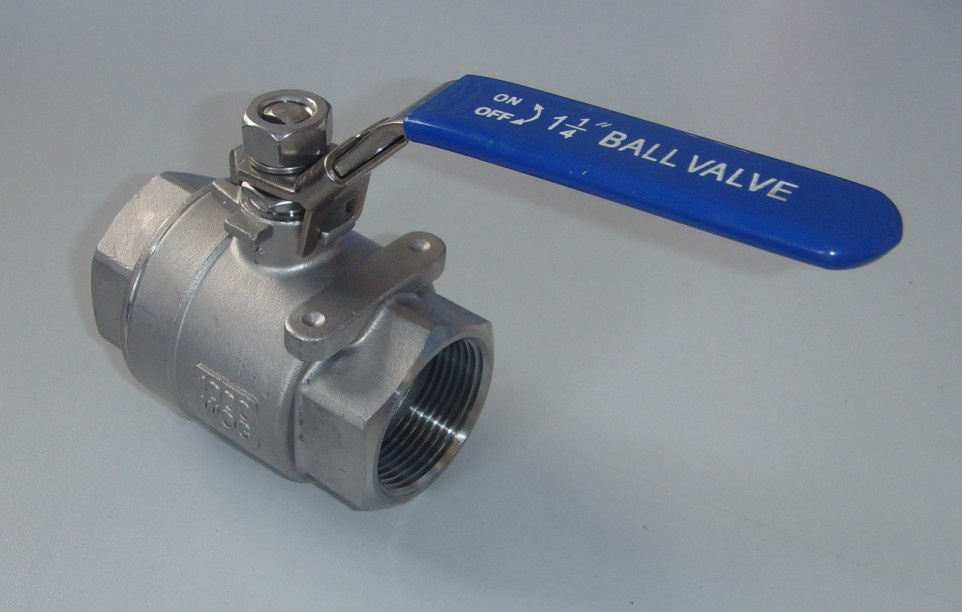

Two-Piece Ball Valve (2PCS)

Two-Piece Ball Valve (2PCS)
Price: US $ 1-20/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T
1. Material: CF8, CF3, CF8M, CF3M, 304, 316
2. Size: 1/4"to 4"
3. Threaded: DIN, BSP, NPT
4. Reduced bore style

1) Material: ASTM A351, CF8, CF8M, CF3, CF3M, 304, 316
1.4301, 1.4306, 1.4401, 1.4404, 1.0619
2) Size: 1/4" to 4".
3) Temperature Range: -20/232degree
4) Working pressure: 1000PSI WOG.
5) Bore: Full bore.
6) Connection Ends: Threaded (Female/Female), Butt welded, Socket welded (BW, SW)

7) ISO-5211 direct mount pad / Long Neck. A
7) Anti-static device.
4. Blow-out proof stem.
8) Suitable media: Water, oil, Gas and some corrosive liquids.
9) Investment Casting.
10) 2-PC ball valve, 2PC flanged end ball valve. Are available.
11) Inner packing: Plastic bags, Outer packing: Cartons and wooden case.
Ball Valve with Direct Mounting Pad, Ball valve with long neck, 2PC flanged ball valve, industrial valve), high performance product.

Meanwhile we can also provide check valve/gate valve/globe valve/butterfly valve. Both for industry and santiary. You are welcomed to design size as your request, we will do our utmost to meet you.
Nominal pressure PN(mpa) 2.5 4 6.4
Shell Test Pressure PS(mpa) 3.75 6 9.6
Sealing test pressure 2.75 4.4 7.04
TightnessTest Pressure 0.6 0.6 0.6
For media SS201 SS304 SS316
Water, oil and gas medium Nitric acid corrosive media Acetic acid corrosive medium
For temperature -40°C——+150°C
Product Standards GB/T12237-2007
Test GB/T13927-1992    JB/T9092-1999
Prod Model: 2PCS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainless Steel
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Zhejiang Fangwen Special Steel Co., Ltd. Is a scientific enterprise which integrates valve casting, design, manufacture, sale and service together. It is located in Binhai Economic Development Zone of Wenzhou, 8 kms away from Wenzhou airport, covers 20, 000 square meters. There are 350 employees in the company now. The annual total output value of our company is always more than 34 million USD in the recent years.

The main products are ball valve, gate valve, globe valve, check valve, strainer under the high and medium pressure etc. Materials include Stainless Steel, WCB, Titanium, Nickel, Hastelloy, Monel, Aluminium Bronze, Duplex Stainless Steel and so on. They can be made according to American standard, British standard, German standard, Japanese standard and other related standards. And they are widely used in petrochemical, food, pharmaceutical and other industries. We have exported them to the U. S., Europe, Russia, Middle East and Southeast Asia markets etc. They have been received good reputation by a large quantity of customers because of the reliability and stability.

Fangwen has scientific management. It has passed ISO9001: 2008 international quality system certification, Korea Certification, PED CE safety certification EU Pressure Equipment Directive, API-6D American Petroleum Institute certification, TS pressure pipe valve manufacturing license certification.

The company has the assorted workshops of casting, machining, assembly, testing. There are complete production processes which are smelting, wax model, casting, machine processing. With large sets of casting equipment, hydraulic equipment, machinery processing equipment, numerical control machine tools, vertical, horizontal machining centers, precision measuring instruments and testing devices. We also have high-tech test equipments, such as Shimadzu spectrophotometer and the United States imported portable spectrum analyzer alloy, high-speed ignition infrared carbon-sulfur analyzer, ultrasonic Lee hardness tester, ultrasonic thickness gauge, hydraulic universal testing machine, and a series of dimensional accuracy testing and analysis of the internal microstructure and other non-destructive flaw detector, we has achieved the aim that controlling the quality of the product manufacturing process perfectly.

Fangwen has always insisted on the development strategy which is "people-oriented, technological innovation, integrity management and brand guarantee", we serve the society with high-quality products and perfect services and Committed to the development of national industries.

We sincerely hope to cooperate with the customers all over the world and make more brighter future.
