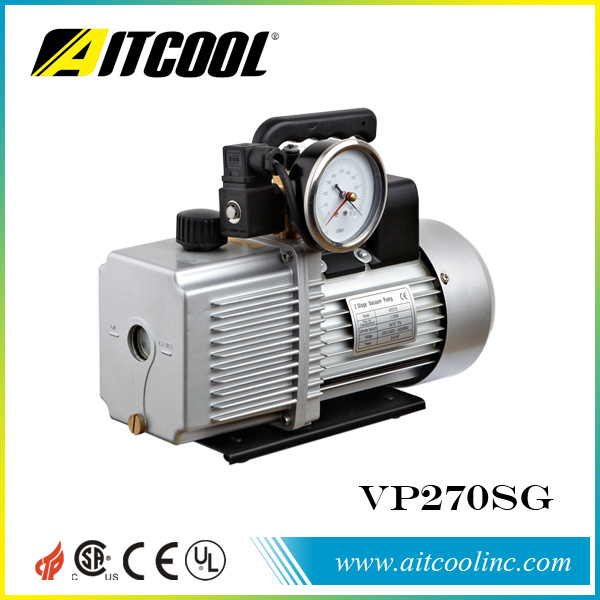

Two Stage Vacuum Pump 3/4HP 170L/Min 50Hz 198L/Min 60Hz (VP270SG)

Two Stage Vacuum Pump 3/4HP 170L/Min 50Hz 198L/Min 60Hz (VP270SG)
Price: US $ 3030-120
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T
Features:

1. Designed specially for HVAC/R service

2. Ultimate deep vacuum: Single stage is 5PA, while dual voltage is 0.3 PA

3. Compact design with aluminum hosing and easy to carry.

4. Thermal protector in the motor to guarantee the pump to run steadily.

5. Both 1/4' and 3/8' SAE flare inlet connections allow for flexibility of connections.

6. Vacuum pump oil included.

7. Suitable for all the main voltage design in the market.

8. Individual design for special customers.
Models VP270SG
Flow Rate 50Hz 6.0CFM
60Hz 7.0CFM
Ultimate Vacuum Partial Pressure 2x10¯¹ Pa
Total pressure 15 microns
Stage 2
Power 3/4HP
Inlet Port 1/4"&3/8"SAE
Oil Capacity 450ml
Dimensions 340 x132 x245mm
Weight 12.5kg

Prod Model: VP270SG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Enter Attribute Here (e.g.: Size): Enter Value Here (e.g.: 12 Inches)
Exhauster Method: Positive Displacement Pump
Structure: Rotary Vacuum Pump
AITCOOL INC., founded in 2007, is a professional national High-Tech enterprise, specializing in researching, developing and manufacturing refrigeration tools for HVAC/R, with an annual capacity of 30, 000 refrigerant recovery machines and 200, 000 rotary-vane vacuum pumps at present. AITCOOL has the most professional mechanical, electrical, refrigerating senior engineers.

In March 2008, AITCOOL achieved the invention patent of refrigerant recovery machine;

In October 2008, our refrigerant recovery machine project was approved by Ministry of national science and technique.

In October 2010, AITCOOL was honored as national High-Tech enterprise;

In September 2011, Our automatic refrigerant recovery machine project was approved by National Economic Commission.

With the high quality and advanced technology, the joint efforts of all our colleagues, which guarantee AITCOOL healthy development over a long period, All products have obtained China patents and got the European CE, American UL certificate, etc., and also achieved ISO9001 certificate, exported to more than forty countries, including USA, South America, EU, Australia, Southeast Asia, Middle East, Japan, etc...Our products with high quality and competitive price is no doubt your best choice.
