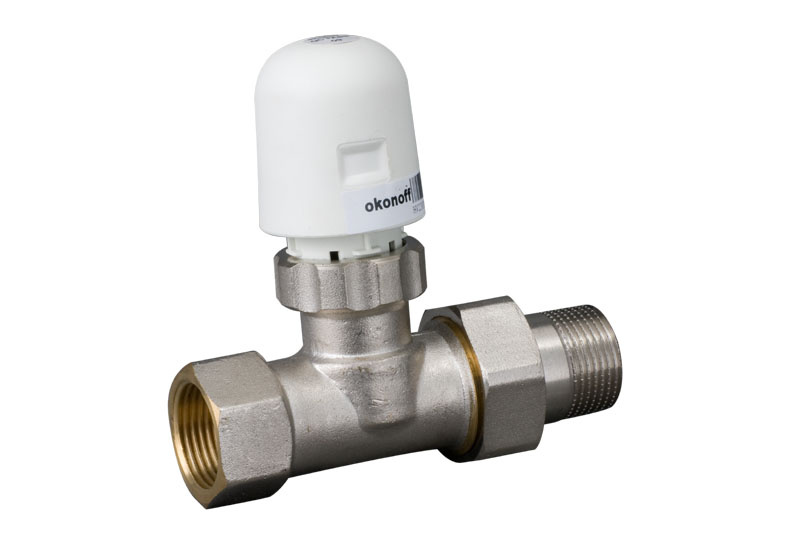

Two Way Room Heating Thermoelectrical Brass Valve (CHV320)
1. Product Summary
CHV300 series of thermoelectrical valves are used to control the on/off of flux in water system, and also can be used as the on/off valve of fan coil in air-conditioning system, or as the flow control valve in radiator or floor heating system. It can be used together with room thermostat or other electrical switches.
2. Technical Parameter:
Working Voltage: 230VAC± 10% or 24VAC± 10%, 50/60Hz
Power Consumption: 4W (Working Voltage: 230VAC)
6W (Working Voltage: 24VAC)
Protection Grade: IP54
Working Journey: ≥ 4.0mm
Running Temperature: 0~50º C
Storage Temperature: -20~70º C
Safety Class: II(Double Insulation)
Connecting Cable: 100cm
Running Time: ≤ 5 minutes (at 25º C)
Nominal Pressure: 1.6MKPa
Connection Way: Pipe Thread (Screw Thread G)
The material of valve body: Casting Brass
The material of actuator: PC Engineering Plastic, Fire-resistant
2 years warranty for Two Way Room Heating Thermoelectrical Brass Valve (CHV320)
|
Model |
Spec |
Dimensions |
Kv
(m³/h) |
|
DN(mm) |
Inner screw thread
(G) |
L |
H |
|
2-way |
CHV315 |
15 |
1/2″ |
55 |
85 |
4 |
|
CHV320 |
20 |
3/4″ |
65 |
90 |
6.3 |
Okonoff Company was founded in 2002, whose headquarter of Asia-Pacific areas is in Shanghai, China.It is an enterprise with new and high technology and integrates with design, manufacture and distribution of the HVAC auto-controlling products\heating (floor heating) auto-controlling products, building (accounting) auto-controlling systems, intelligent home systems and so on.
Okonoff has about 200 workers, plant area reach 26680 M2.Having 30 research staff, it is 15% of all staff.Investment of R&D is about 600 thousands RMB, it is about 20% of total investment.In many cities, okonoff set up offices, like Beijing, Hang Zhou, Guangzhou and so on.
Okonoff Company persists in enhancing the capacity of scientific and technological innovation as basis, humanistic knowledge-based as their duty and try best to make the living environments be comfortable and economic.Besides the present R & D team.
Okonoff Company set up okonoff Auto Control.INC in the United States by cooperating with some famous university and research institutions, the main purpose is to study and master the advanced auto-controlling technology and latest information about products.Now, the product developmental system has been in sync with international level and successfully developed six major productions ranges, more than 1, 000 varieties of products.
Okonoff Company treats the quality as the main principle of survival and development, strictly implements the IS9001 quality management system, increases the investment of advanced manufacturing and testing facilities, tries hard to structure accurate production system.Okonoff Company has been authorized the Quality-Trust Enterprise, one of ten Famous Brands in the industry, Shanghai High-Tech Enterprise, Scientific and Technological Demonstration Enterprise and so on.Most of our products have got CE, UL, TUV, RoHS certifications, test licenses, test reports, and over fifty products got patent protections, three products won High-tech Transformation Award, also we established the fund for the projects support and two products got "Software Copyright Registration" certification.
Okonoff Company always treats customers as the important core, we believe quality + service = customer satisfaction, and always remembers that "Serve every customers sincerely" is our first guideline, improves the marketing system gradually and makes the sale network cover the major cities.Now, our products have been widely applied in some large and important projects in China.The marketing aim of Okonoff Company is to achieve the simultaneous growth both on the domestic and international markets.Through the sustained investments, we gain good effects in the overseas markets;Products have been exported to Europe, the United States, Southeast Asia, Africa and so on.
Facing the global economy, we persist in the spirit of "Hard Work, Insist Principles, Keep Innovation, and Pursue Excellence".Now, Okonoff Company is carrying out the development strategy of "Specialization, Science and Technicalization, Internationalization ", try our best to enhance our company from the End-controlling device to the whole system integration.
We expect that in the HVAC area in the world, there is famous brand comes from China, her name is "okonoff"
