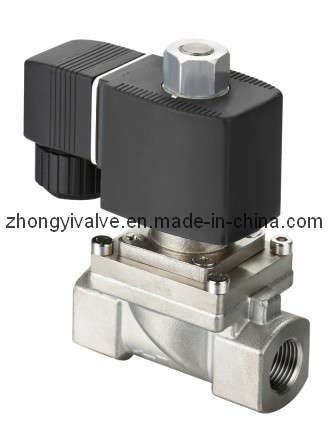

Two-Way Solenoid Valves

Two-Way Solenoid Valves
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: T/T
Operated way: Pilot-operated
Control way: Nc(standard), no
Pipe size: G1/4~g2(standard)
Dn: Dn10~50mm
Pn: The highest pn: 1.6mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80 centigrade (+130centigrade, )
Circumstance temperature: -10~+50centigrade

Material: Stainless steel
Sealing material: NBR(standard)\FKM\EPDM
Standard voltage: AC: 220V(50/60Hz) DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
  Standard:
Item no. DN
(mm)
PIPE SIZE
(G)
PN
(MPa)
Kv
(m3/h)
circumstance temperature medium temperature
2231008BCr 10 1/4 0.02~1.0 1.4 -10~+50 -10~+80
2231010BCr 10 3/8 0.02~1.0 1.4
2231015BCr 10 1/2 0.02~1.0 1.4
2231020-20Cr 22 3/4 0~1.0 6.4
2231025Cr 22 1 0~1.0 6.4
2231032Cr 40 1 1/4 0.02~1.6 18
2231040Cr 40 1 1/2 0.02~1.6 18
2231050Cr 50 2 0.02~1.6 28
2211020Cr 23 3/4 0.02~1.6 7.1
2211025Cr 23 1 0.02~1.6 7.1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Valve Structure: Direct Action Diaphragm Structure
Power Supply: DC Solenoid Valve
Connection Form: Flange
Type: Pilot Operated
Company Name: Ningbo Hi-tech District ZhongYi Imp & Exp Co., Ltd

History in Pneumatic: 20 years

Main Products:

A. Pneumatic components, like Pneumatic Cylinder, Solenoid Valves, pneumatic valves, FRLs, Pneumatic fittings and couplers, Hoses, muffler, Mini air compressor, mould, etc.

B. Hydruaulic components, hydraulic cylinders and hydraulic fittings, etc.

C. Metal and plastic parts

D. Hardware and fasteners

E: Home appliance

Total Staff: About 200, including 2 exporting sales, 5 technical

Engineers.

Workshop Area: 2300square meters

Management System: ISO9001. ISO2000.

Advantage: Strong Technical design ability, Stable quality, and large production capability

Honor: NO. 1 pneumatic manufacturer and exportor in Chinese pneumatic field.

We're sure with both our hard work we'll enjoy common successful future in your local market.
