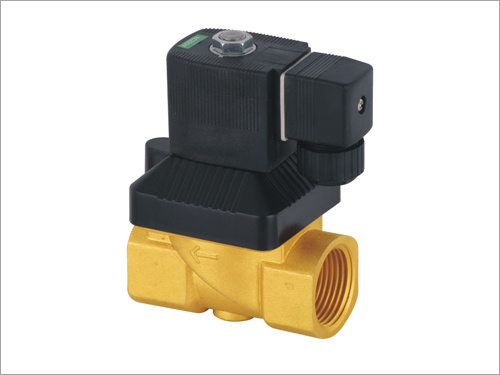

Model TX5404 SEIRES
Name: TX5404 SERIES
Feature
Note: Add suffix C for normally open solenoid valves.
Media temperature up to 180
Operating pressure up to 5Mpa
Idea for fluid media with kinematic viscosity <=1mm2, including water, gases, acetylene, liquefied gas
Coil: Encapsulation with thermoset plastics.
Electric connector with IP65, complying with ISO standard, wide interchangeability
Technology Parameter
Model Orifice Size Port Size(G) Working pressure Ambient Temperature Medium Temperature KV Value Power Consumption Change Frequency Power,
(mm) (MPa) () () (m3/h) AC(VA) DC(W) (Hz) Voltage
TX54041001 1.2 G1/8 0~1.6 -20~+55 0~+180 0.12 14 8 1 AC: 50Hz
TX54041002 2 G1/4 0~1.0 0.16
TX54041003 3 G1/4 0~0.6 0.23 24V, 36V
TX54041008 13 G1/4 0.3~5.0 -20~+55 0~+180 3.6
TX54041010 G3/8 110V, 220V
TX54041015 G1/2 0.5
TX54041020 25 G3/4 0.3~3.5 11 DC:
TX54041025 G1 24V, 12V
We are located in 5A-level scenic spot in China - Xikou, Ningbo, enjoying elegant environment and convenient transportation. We are a professional company integrating the research and development, production, and sale of two-position solenoid valves. We boast more than ten years of production experience, exquisite workmanship, high quality, and complete specifications. Our products are widely used in machinery, textile, chemical, environmental protection, food, and other fields.
Depending on the quality of life of the company, such as to produce first-class products as we are seeking goal. ISO9001 quality management system fully in order to organize production, testing marketing and after-sales service. Company's sophisticated machinery and equipment, advanced production technology, technical strength strong, detection means complete, after-sales service system is sound. We insist on "customer the first"principle for every customer to provide high-quality, all-round service. Tianxin people emphasis on reputation, heavy quality, service, product structure, novel, technology leadership, quality excellence, deeply customer's trust and praise. Current products have been exported to the United States, France, India, Britain, Germany, Ltaly, Russia, themiddle East, Taiwan and other countries and regions.
We are willing to work with all concerned Tianxin, Tianxin trusted friends together, hand in hand a total of Create brilliant tomorrow.
