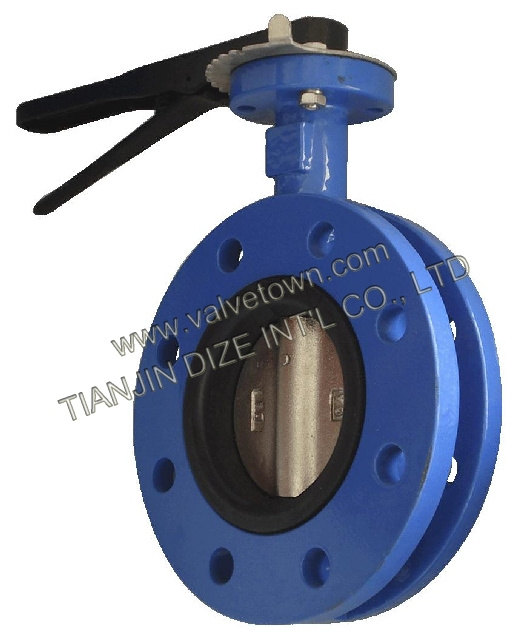

U-Section Butterfly Valve (CBFV-FU)

U-Section Butterfly Valve (CBFV-FU)
Price: Negotiable/Piece
Trade Terms: FOB,EXW,CFR
Min Order: 1/Piece
Pay Type: L/C,T/T
Technical data
Size: 2"~ 48"/DN50--DN1200
Nominal pressure: PN10/PN16
Test pressure:
Sealing: PN11/PN17.6
Shell: PN15/PN24
Working temperature: -15 ºC~150 ºC
Applicable medium: Water, steam, oil, etc.

Standard
Design standard: En593
Face to face: ISO5752, en558-1
Body flange drilling: Any standard as request
Top flange: ISO5211
Test standard: ISO5208
Prod Model: CBFV-FU
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Working Temperature: Normal Temperature (',-40??C
Work Pressure: Low Pressure (',Pn<1.6mpa)
Seal Form: Supercharging Pressured Sealed
Material Of Seal Surface: Soft Sealed
Structure: Centre Sealing
TIANJIN DIZE INT'L Co., Ltd. Is an experienced co. For supplying valves and pipe fittings. We have advanced technologies, facilities, resources and talented personnel for processing, designing and manufacturing of different kinds of valves.

The main products are valves and pipe fittings. Valves including BUTTERFLY VALVES, GATE VALVES, CHECK VALVES, GLOBE VALVES and so on. Pipe fittings contains Y-STRAINERS, FLANGES, ELBOWS, TEES, RUBBER JOINTS, METALLIC EXPANSION JOINT and other FITTINGS. Our products are in medium and low pressure rate(0.5--6.4mpa). Nominal dimension from DN15 to DN3000. The valves are widely applied for water draining, power plant, petrochemical industry, heat supply, metallurgy, pharmacy, etc.

We adopted international standard for the product designing and manufacturing. Our products with high quality and credible standing are well sold around the country and exported to many countries in Europe, Russia, America, South Africa and Asia. Also we can produce according to special design.

Warmly hope to cooperate with you in the near future. Any other question, please feel free to let us know.
