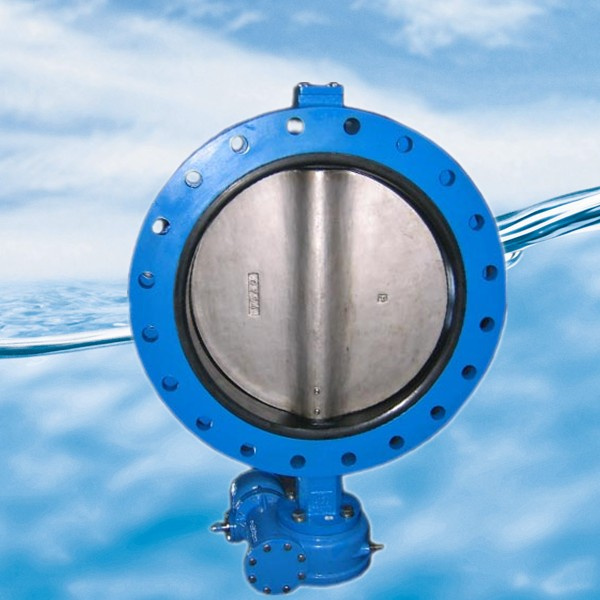

U Type Butterfly Valve

U Type Butterfly Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union
U type butterfly valve

Size: DN50mm-DN1200mm
Design standard: API609/EN593
End flange: DINPN10/PN16, BS4504PN10/PN16, ANSI class125#/class150#
Face to face: ISO5752/EN558-1 20 Series
Top flange: ISO5211
Body: Ductile iron/CF8/WCB
Disc: Ductile iron/CF8/CF8M/C95400/C95500
Stem: SS420/SS431
Seat: EPDM/NBR/Viton
Actuator: Bare shaft/Lever/Gearbox and handwheel
Coating: Expoy/Nylon/PTFE
Pin: Monel/SS416/SS431
Suitable medium: Water/Seawater/Sewage/Air/Foodstuff/Oil

The products are widely used in industries such as water projects, urban water supply & drainage, sewage treatment, electric power, petroleum, petrochemical, heat supply, shipbuilding, medicine and metallurgy. Ewuipment used in regulating or cutting off medium in pipeline.
Prod Model: U Type
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: ISO9001, 97/23/Ec, Wras
Color: Blue/Green/Red/Black or as Per Customers' Requirem
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Soft Sealed
Connection Form: Flange
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Medium Temperature (',120??C
Application: Water Industrial Usage
Tianjin KEFA Valve Co., Ltd. Located in the heartland city of Tianjin, China. Our company was established in 2001, specializing in designing, manufacturing and marketing of various kinds of resilient and metal seated butterfly valves, gate valves, check valves, knife gate valves, globe valves, ball valves, flap valves, strainer, safety valves, rubber bellows and relative valve parts.

With the area of 16650 square meter, our factory owns modernized workshops, including casting, machining, sand blasting, vulcanizing, coating, assembly, air & hydraulic testing facilities and office buildings. With the support of experienced production staff, technicians, QC engineers and sales teams, KEFA has successfully obtained ISO9001: 2008 Quality Management System Certification and European Union Pressure Equipment Directive 97/23/EC certification (CE Certificate) in 2005. KEFA also obtained the WRAS/WRc-Certificate both for butterfly valves and rubber bellows in 2008. And our company spray coating technology is up to the international standard.

We provide OEM service and also have the ability to design products according to customers' requirements. We focus on customers' satisfaction and obtain fantastic return that we never lose a customer in these 13 years.

Our valves and parts are exported to all over the world. We have a big market special in US, Europe, Asia, Middle East, South Africa.

We are expecting you to join us and develop the global business together.
