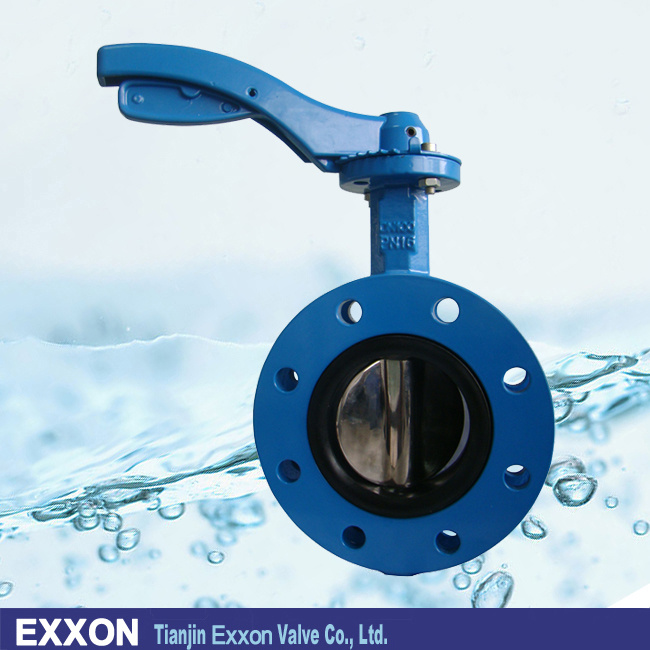

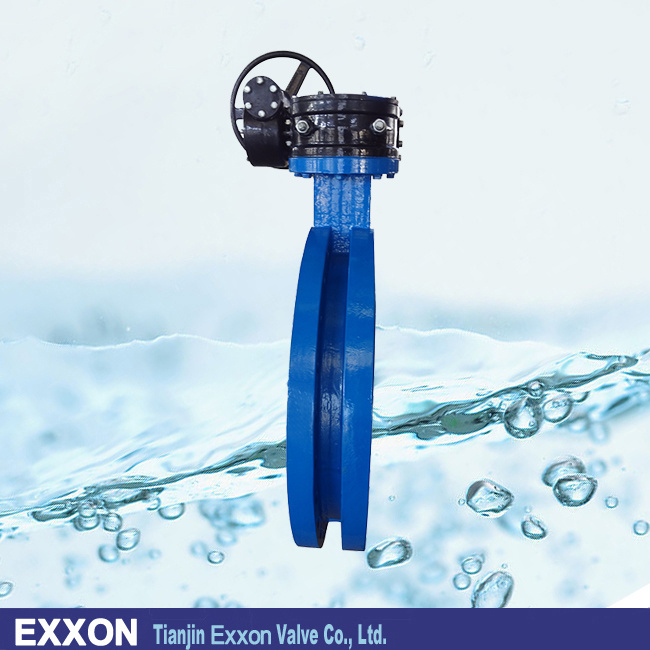

Cast iron flanged type butterfly valve (D41X)
Materials Range:
Body: Stainless steel.
Disc: Stainless steel.
Stem: Stainless steel
Seat: NBR/EPDM/PTFE/VITON
Type Available: Flanged type.
Sizes Available: DN50mm to DN1200mm (2" to 48")
Pressure Range: PN (MPa): 1.0, 1.6, 2.0, 2.5
Materials Standard: Others on request
Basic Design: ANSI/AWWA C504
Face to Face Dimension: BS5155 Short, ISO5752 (Series 13), DIN 3202 F16
Inspection & Testing: API 598,
Flanged End Dimension: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,
JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange: ISO 5211
Suitable Mediums: Fresh water, sea water, gas, oils, acids, alkalis, etc
Suitable Temperature: -26-82C
Design characters:
Correcting holes are made on flange according to standard, easy correcting during the installation.
Through-out bolt or one-side bolt used. Easy replacing and maintenance.
Shaft and disc connected by pin, torque screw or non pin, to achieve the opening and closing.
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
