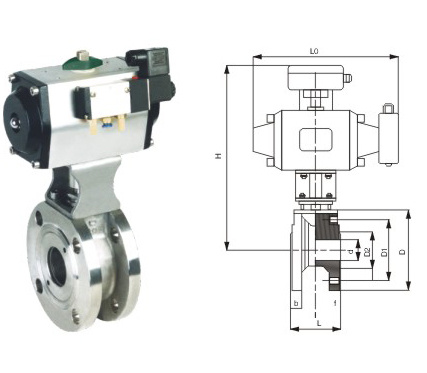

RV Q641F ultra short pneumatic Ball valve is a specially designed and carefully manufactured product on the basis of introducing foreign advanced technology. Through intelligent control and positioning, the product matches with Siemens electro pneumatic valve control operation through inputting 4-20mADC signal and 0.4-0.7Mpa gas source to realize adjustment of pressure, flow, temperature, liquid level, etc. The product is powered by compressed air. Valve rod drives valve plug to rotate 90° In valve body to realize full opening and full closing. The product is divided into metallic seal and soft seal by its sealing performance. The product features compact structure, small volume, high operating reliability, good sealing performance, easy maintenance, convenient installation and high adaptability, etc. The product is especially suitable for sticky and particle and fiber-contained medium. The product is widely applied in automatic control system as remote centralized control or local control in petroleum industry, chemical industry, teaching, and appliances, light industry, high pressure equipment, pharmaceutical industry, paper-marking industry, etc.
Model preparation instructions
P— Body material: P stainless steel, C carbon steel
16— Nominal pressure: 16 1.6MPa
F— Sealing surface material: H metal seal
F PTEE Seal, X rubber seal
41— Executive body: 6 pneumatic
6— Rotation mode: 6 pneumatic
Q— Valve type: Q ball valve
RV— River-wave product
