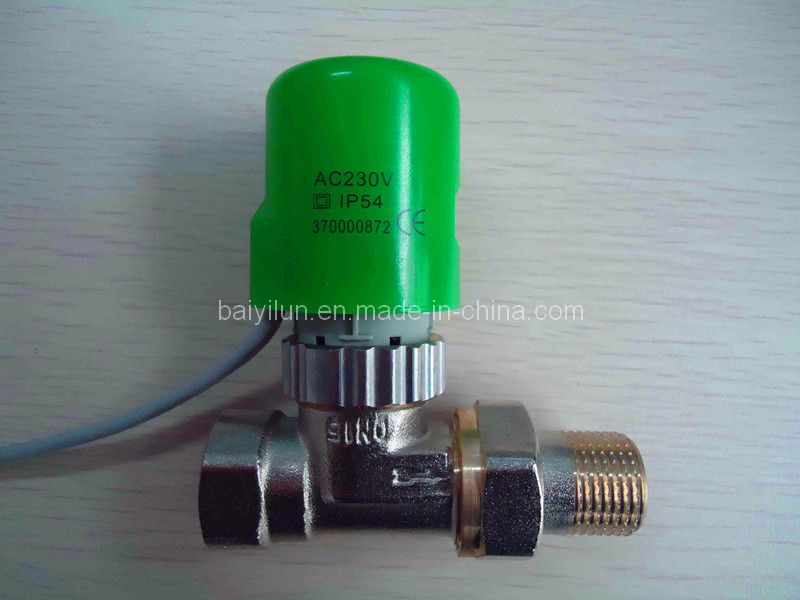

Underfloor Heating System Actuator Thermo Valve

Underfloor Heating System Actuator Thermo Valve
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Set
Pay Type: L/C,T/T,Paypal,Western Union
Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on Heating products, 30 CNC machines, Over 40 exported Countries, Production Capicity around 500, 000 pieces/year, Welcome you come to visit us and cooperate with us.

Thermal Actuator
Core: Imported valve core
Voltage: 230V (220V) 24V
Status: NC/NO
Power Consumption: 2VA
Thrust: 110N
Stroke: 3mm
Running time: 3-5min
Connection size: M30*1.5mm
Ambient temperature: From -5degree to 60degree
Cable Length: 1000mm
Protective housing: IP54
100 % Testing before leaving the factory

Valve body
Made of brass, easy to be installed
Low resistance
Water temperature: Less than 120 degree
Normal resistance to pressure: 10 bar
Guarantee: 3 years
Chrome plated
OEM branding available
DN15/20/25 avaiable
Straight/angled valve available

Prod Model: BYL-6633-1
Markets: North America,Eastern Europe,Oceania,Western Europe
Certification: En215, CE, ISO9001:2008, ISO14001:2004
Avonflow Baiyilun TRV Co., Ltd. (old name "Wenzhou Baiyilun Hardware Co., Ltd") specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve doesn't need exterior energy while automatically controlled by indoor temperature, which can not only save energy but also protect environment and give you a suitable indoor temperature.

Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and through the test of Beijing Construction Project Quality Testing Centre. Our company also has advanced and complete testing and inspecting instrument.

2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.
