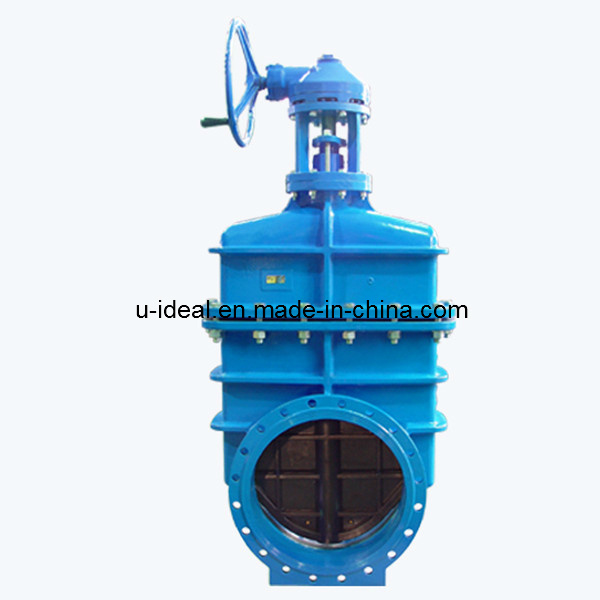

Underground Rubber Type Gate Valve

Underground Rubber Type Gate Valve
Price: US $ 70/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Product Description

U ideal valves
Type: Butterfly valves, Gate valves, Check valves, Global valves, Y strainer, Level gauge, Flow meter
Gate Valves
1)DIN3352/BS5163/API600
2)Pressure: PN10/16
3)Dimension: 1.5'-24"
 Specifications:
1) Sizes: 1/2 - 16"
2) Pressure class: PN0.4-PN64 Mpa
3) Suitable temperature: -28 ~ 425oC
4) Suitable medium: Water, steam, oil products, nitric acid, acetic acid
5) Body material: CS, CI, FS, DI, SS316, SS304, Brass
6) Connection: Flange

Performance range

PN
1.01.6         MPa
Strength test1.52.4
Sealing  test1.11.76
Suitable Temperature  ≤100ºC
Media used           Water,sewage etc.




Main part materials

Title    of   part
Material
StemStasinless steel
O-seal ringNBR
BonnetDuctile iron
Stem nut Copper alloy
GateRubber lined ductile iron
BodyDuctile iron
Divided ringCopper alloy
Code lockStainless steel,copper



Main dimensions

DN
1520253240506580100125150200250300350400
CSZ15XH808993130130148----------
L657080100100110----------
CSZ45XH-----220245300315340420540646735894948
L-----178190203229254267292330356381406
D0-----160160200200225280330385385450450


Prod Model: Z45X-10 Z45X-16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sizes: 1/2 - 16"
Pressure Class: Pn0.4-Pn64 MPa
Suitable Temperature: -28 ~ 425oc
Suitable Medium: Water.Steam, Oil Products, Nitric Acid, Acetic a
Body Material: CS, Ci, Fs, Di, Ss316, Ss304, Brass
Material: Cast Iron
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Household Usage
Tianjin U-ideal Instrument Co., Ltd is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.

Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.

Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.

Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.

Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge

Welcome to contact us, we will reply you in 24hours.
