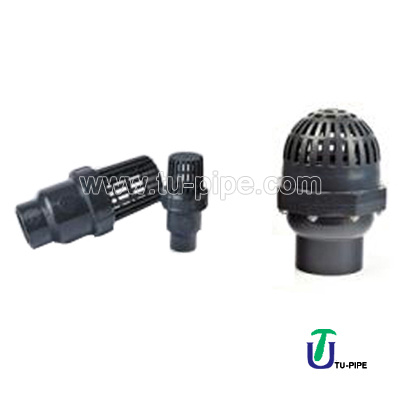

UPVC/CPVC Foot valves ANSI advantages:
1. New CUP shape ball can stop water by just 0.5kg pressure
2. Materials meet drinking water standard
3.100% pure virgin material, CaCO3 free (Chalk)
4. UV resistant powder added
5. Can be assembled vertically or horizontally
UPVC/CPVC Foot valves ANSI description:
1. Material: PVC, CPVC
2. Size: 1/2'' - 6''; 20mm - 160mm; DN15 - DN150
3. Standard: ANSI, DIN, JIS, CNS
4. Joint End: Socket or Threaded(NPT, PT, BSPF)
5. Working Pressure: 150 PSI
6. Operating Temperature: PVC(0~55º C); CPVC(0~95º C)
7. Valve body color: PVC(dark gray/white), CPVC(light gray)
UPVC/CPVC Foot valves ANSI design:
1. Bonnet can prevent massive objects entring into foot valve
2. Increase the nut-solid, thread taper and laps, improved pressure resistant
3. Seat is designed to fix the sealing performance
4. Thickening Oring, more toughness, sealing better
5. Seat is designed to fix the seal
6. From the platform to half-ball sealing, more reliable performance, sealing pressure levels increased (0.5kg-10kg), and it can easy to install by horizontal or vertical
7. In the ribs from three to six, making better diversion
|
SIZE |
d |
d1 |
d2 |
D |
L |
L1 |
|
1/2"(15) |
15 |
21.54 |
21.23 |
54.00 |
109.00 |
22.30 |
|
3/4"(20) |
20 |
26.87 |
26.57 |
63.00 |
137.50 |
25.50 |
|
1"(25) |
25 |
33.65 |
33.27 |
73.50 |
153.00 |
28.60 |
|
11/4"(32) |
32 |
42.42 |
42.04 |
84.50 |
181.50 |
32.00 |
|
11/2"(40) |
40 |
48.56 |
48.11 |
98.00 |
204.00 |
35.00 |
|
2"(50) |
50 |
60.63 |
60.17 |
119.00 |
239.00 |
38.00 |
|
21/2"(65) |
65 |
73.38 |
72.85 |
165.00 |
235.50 |
47.00 |
|
3"(80) |
75 |
89.31 |
88.70 |
172.00 |
256.00 |
53.00 |
|
4"(100) |
95 |
114.76 |
114.10 |
205.00 |
321.50 |
62.00 |
|
6"(150) |
150 |
168.83 |
168.00 |
290.00 |
445.00 |
86.50 |
