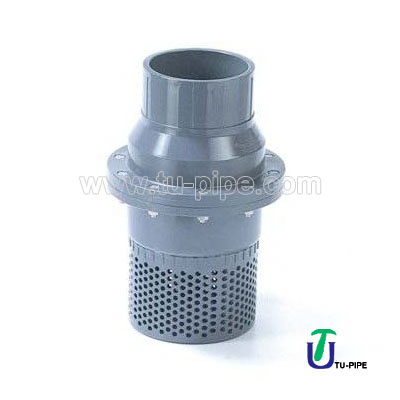

Name: UPVC Economy Swing Foot Valves DIN JIS ANSI
Material: UPVC
Standard: DIN JIS ANSI
Size: 3"~4"
UPVC Economy Swing Foot Valves DIN JIS ANSI Description:
With arrow to mark the direction of flow, and to be installed according to flow direction.
Vertical installation: The arrow mark should be installed upward.
Horizontal installation: The arrow mark should be shown on top to indicate the flow direction.
|
Size |
Standard |
Material |
Gasket |
O-ring |
End type |
|
3"~4" |
ANSI, JIS, DIN |
PVC |
EPDM, FPM |
EPDM, FPM |
Socket,Threaded,Flanged |
|
SIZE |
3" |
4" |
|
(80mm) |
(100mm) |
|
JIS |
ΦD1 |
150 |
175 |
|
Φd1 |
89.6 |
114.7 |
|
Φd2 |
88.83 |
113.98 |
|
I |
47.63 |
57.15 |
|
ANSI |
ΦD1 |
152 |
191 |
|
Φd1 |
89.31 |
114.76 |
|
Φd2 |
88.7 |
114.07 |
|
I |
47.63 |
57.15 |
|
DIN |
Φd1 |
90.3 |
110.4 |
|
Φd2 |
90.1 |
110.1 |
|
I |
51 |
61 |
|
thd./in |
NPT |
8 |
8 |
|
BSPT |
11 |
11 |
|
ΦD |
196 |
210 |
|
ΦD2 |
185 |
210 |
|
ΦD3 |
153 |
153 |
|
Φd3 |
108 |
133 |
|
L1 |
221 |
271 |
|
L2 |
260 |
300 |
|
L3 |
275 |
320 |
