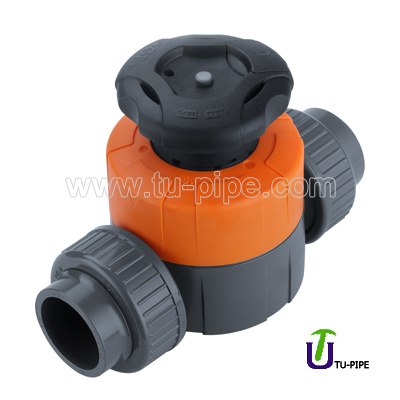

UPVC Union Type Diaphragm Valves DIN Pn16 (ANSI SCH 80)
| Price: |
US $ 1/Piece |
| Trade Terms: |
others |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Name: UPVC Union type diaphragm valves DIN PN16 (ANSI SCH 80)
Material: UPVC
Standard: DIN, ANSI
Size: 15~50
|
Size |
Overall Dimensions(mm) |
Work pressure |
|
DN(de) |
D |
d1 |
d2 |
T |
d |
L |
H |
H1 |
D1 |
kg/cm2 |
|
15(20) |
46.5 |
20.3 |
19.95 |
16.5 |
16 |
128 |
90 |
14 |
80 |
10 |
|
20(25) |
53.5 |
25.3 |
24.95 |
19 |
20 |
152 |
102 |
18 |
80 |
10 |
|
25(32) |
64 |
32.3 |
31.9 |
22.5 |
26 |
166 |
119 |
21 |
94 |
10 |
|
32(40) |
74.5 |
40.35 |
39.9 |
26.5 |
34 |
192 |
126 |
26 |
117 |
10 |
|
40(50) |
85 |
50.35 |
49.9 |
31.5 |
43 |
222 |
139 |
33 |
117 |
10 |
|
50(63) |
100 |
63.4 |
62.9 |
36.7 |
56 |
266 |
172 |
39 |
152 |
10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Zhejiang Taizhou Triunion Co., Ltd. As a member of Hongtu Group, is a union corporation, which specilize in producing & selling High Quality PVC Fittings, PVC Butterfly Valves, FRPP Ball Valve, PVDF Check Valve, PE Irrigation Fittings, PP-H Fittings, PP Compression Fittings, HDPE Fittings, SMC Composite Manhole Cover BS EN124 and Australian AS3996 Series Products with Hongtu Plastic Product Co., Ltd; Resin Chemical Co., Ltd; Yinyida Pipe and Fittings Co., Ltd.; Sanfa Plastic Co., Ltd.;
Our PVC Pressure Fittings accord with ISO 4422-2: 1996, GB/T 10002.1-1996, GB/T 10002.2-2003 and DIN 8063 and HDPE Fittings with SDR17 SDR11 PE100 for water supply accord with GB/T 13663-2000 standard, PP Compression Fittings accord with UNI 9561-2, DIN 8076, ISO 14236 standard, PP-R Pipes and Fittings for Water Supply accord with DIN 8077 & DIN 8078 standard, and PVC Butterfly Valves accord to DIN / ANSI / JIS standard, SMC Composite Manhole Cover accord with BS EN124-1994 & EN 20105-A03: 100 standard and Australian AS3996-2006 standard.
Having competed in the market for years, we have become famous manufacturer and exporter of long-standing and high reputation. Our competitive prices, experience, efficiency, and reliability have won confidence and goodwill among our many clients from all over the world.
We always keep the enterprise idea: Honesty and Equality, Mutual Benefit and Win Win.
Main Businesses: PVC Fittings, PVC Butterfly Valves, HDPE Fittings, PP Compression Fittings, SMC Composite Manhole Cover Series Products.
