Product Explanation:

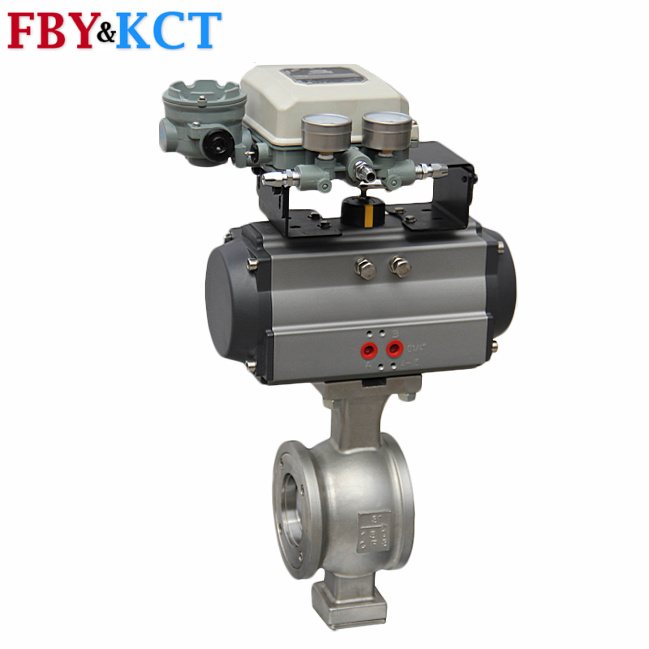

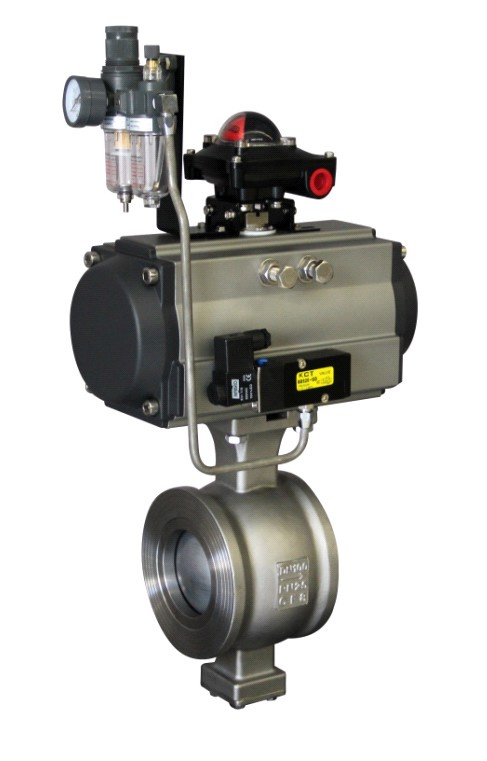

V-notch Pneumatic ball valve/V Port Pneumatic Ball Valve
Vee ball valve
V port ball valve is quarter turn valve, primarily intended as a control valve, but it can also used for shut off service. V segment ball valves is in V-notch design with strong cutting force and self-cleaning, especially suitable for control of medium containing fiber and tiny solids, therefore, it is widely used in the Auto-control systems in industries such as pulp and paper, chemical industry, petroleum, chemical fiber, power, metallurgy, pharmacy, environmental protection.
Features
1. Single-piece valve body
V port ball valve have single-piece bodies, which prevents leaks caused by separate flanges.
2. Bearings
V-ball adapt the upper and lower stem to fixed by bearings. Bearings are by composite material, it have good lubricating, strong abrasion performance, high mechanical stability, small torque for opening, to ensure the valve with excellent sensitivity and sensor speed.
3. Movable seat
V-ball valve adapt the belleville washer or column spring loaded movable seat structure, , the seat can make the best contact with the disc by the springs'return force, and has good sealing performance. PTFE seat and metal seat are available for different application requirements.
4. V segment ball
Specially designed V-segment ball provides equal percentage flow characteristic with high precision control performance as well as strong cutting force and self-cleaning function.
5. Spline connection between shaft and ball(for 10" and above)
Ball and shaft are connected by spline. It provides a seamless match ball with shaft is prevented with enhanced control precision.
6. Low capacity
For super-low flow applications, low capacity valve are available with DN25 for precise control.
7. ISO5211 direct mounting pad
V port ball valve built with ISO5211 direct mounting pad. It conveniently connect with various kinds of drive, such as the handle, worm gear, pneumatic actuators, electric actuators, hydraulic actuators etc.
8. Full Silica sol Investment Casting body
The V-port ball valves' body are Full Silica sol Investment Casting, so it have very smooth surface, it also more beatiful.
9. End type: Flanged end and wafer end
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
