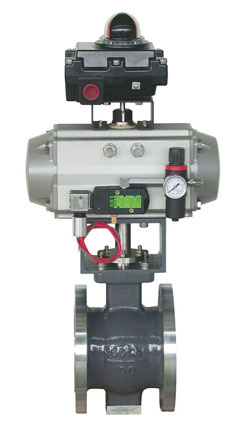

V pattern hard metal seal ball valve
ZSHVE Pneumatic Eccentric Ball Valve
The valve body is made by forged technology with impact structure, small cubage and good pressure resistance.
The "V" disc is installed eccentrically. When closed, a large eccentric force is generated by the disc to press it tight to the gasket for the best sealing effect. When open, the disc disengages from the gasket quickly to avoid the abrasion of the gasket.
There are soft and metal sealing gaskets for selection to meet the different demands of the working situation. And the satellite alloy surface can be used to the hard conditions.
The eccentric structure reduces the operating torque greatly and increases the allowable pressure head.
The surface of the disc has been endurance and abraded to make it smooth and anti-friction. And the satellite alloy can be built up on the sealing surface...
Transportability and 100% adjustable rate
When the V-shaped disc is closed to the sealing gasket, it can cut off the fiber of the medium and ext rude out the grains. So it is specially applicable to the mediums such as paper pulp, sewage and other mediums containing fibers and grains, of course, it can be used for the common mediums.
The standard actuator(pneumatic piston type and electric) can be counterchanged.
The PN grade is 150 and 300. The DN is 1-10 inches, the leakage rate standards are IV, and the valve spool corner is 90° .
Various specifications are optional.
Main Material
Valve body: WCB, CF8, CF3, CF8M, CF3M
Ball body: CF8, CF3, CF8M, CF3M
Valve seat: Reinforced PTFE, 304, 304+build-up satellite
Valve stem: 420, 304, 30L, 316, 316L, 630
Gasket: Rubber asbestos plate, 304, graphite spirotallic gasket
Packing: Polytetrfluoroethylene, flexible graphite
Guiding sleeve: QA19-4, 304, composite
Zhejiang Yongsheng Instrumentation Co., Ltd. is a professional shareholding enterprise. We specialize in the production of instrumentations of industrial automation - control valves.
Located beside the beautiful Fuchun river in the south of Hangzhou City, our company covers an area of over 30, 000 square meters and possesses more than 200 employees, including over 60 senior and medium-level technicians in various fields. Our main products include: Pneumatic diaphragm control valve, self-operated pressure control valves, linear-motion regulating valve series, rotary-motion regulating valve series, intelligent control valve series with more than 200 types and thousands of specifications. With annual output of control valves more than 20, 000 sets. In 2008 our company invested 30 million yuan found the Yongsheng fluid machinery Co., Ltd. With annual output of 5000 tons and start the processing line of new craft cast steel, stainless steel, cast iron which guarantee the valve quality at first manufacture process.
Our company adopts the scientific management, strictly according to the ISO9001: 2000 quality management system. We carry out the high-standard production relying on the solid technological power, advanced equipment, production technique and perfect means of test, and provide the systematic services based on the complete after-sales service system. In addition, we constantly produce high-quality products expected and required by the customers, for pursuing for existence in competition, benefits in quality, advancement in technology and promotion in management.
If you are interested in our products, please feel free to contact us for more information. We are looking forward to cooperating with you in the near future.
