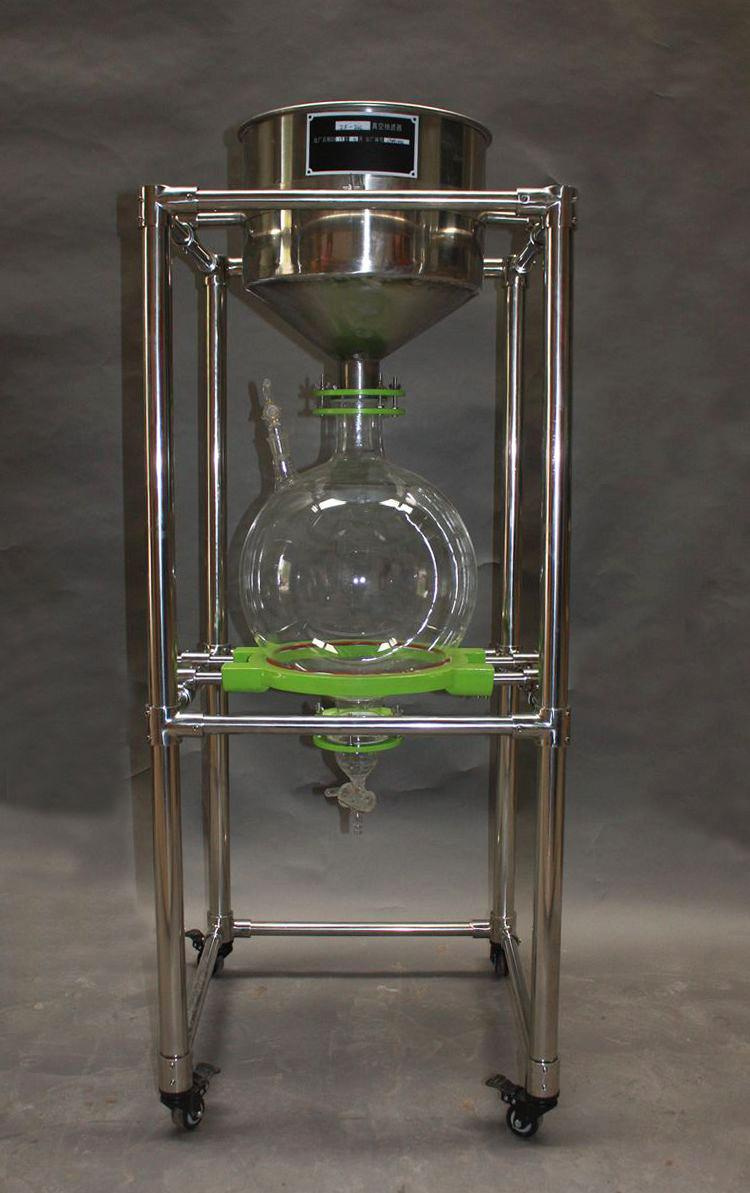

Vacuum Filter
Price: |
US $ 650-1500/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Paypal,Western Union |
1. Stainless Nutsche Filter
2. Glass or PTFE Discharging Valve
3. Compound Seal in middle position, can resist against organic solvents,etc.
4. Stainless structure, the appearance is perfect!
5. we can provide 5L 10L,20L,50L,etc.
Technical Parameters :
Basic parameters | Type | ZF-20L |
Glass material | GG-17 |
Frame material | Stainless steel |
Pipe material | 304stainless steel |
Moving method | Universal seed round with belt brake type |
Reaction bottle volume | Sphere 20L |
Funnel size (mm*mm) | 350*220 |
Funnel material | Stainless steel |
Number of reaction bottle | 3 |
Distance between dumping opening and ground (mm) | 450 |
Filter opening | ¢80flange opening |
Air exhaust device | 24#standard bucket valve |
Dumping method | Glass dumpling valve,¢80flange opening |
Exterior size(mm*mm*mm) | 490*490*1600 |
Packing size(mm*mm*mm) | 1650*540*540 0.46 square |
Packing weight(KG) | 50 |
Optional configurations | Main support | Tray type |
Frame parts | Plastic spraying or PTFE |
Our laboratory glass and instruments are developed independently, we can manufacture according to customers' demands. |
Technical Parameters :
Basic parameters | Type | ZF-30L |
Glass material | GG-17 |
Frame material | Stainless steel |
Pipe material | 304stainless steel |
Moving method | Universal seed round with belt brake type |
Reaction bottle volume | Sphere 30L |
Funnel size (mm*mm) | 450*250 |
Funnel material | Stainless steel |
Number of reaction bottle | 3 |
Distance between dumping opening and ground (mm) | 450 |
Filter opening | ¢80flange opening |
Air exhaust device | 24#standard bucket valve |
Dumping method | Glass dumpling valve,¢80flange opening |
Exterior size(mm*mm*mm) | 490*490*1650 |
Packing size(mm*mm*mm) | 1700*540*540 0.49 square |
Packing weight(KG) | 60 |
Optional configurations | Main support | Tray type |
Frame parts | Plastic spraying or PTFE |
Our laboratory glass and instruments are developed independently, we can manufacture according to customers' demands. |
Basic parameters | Type | ZF-50L |
| Glass material | GG-17 |
| Frame material | Stainless steel |
| Pipe material | 304stainless steel |
| Moving method | Universal seed round with belt brake type |
| Reaction bottle volume | Sphere 50L |
| Funnel size (mm*mm) | 450*250 |
| Funnel material | Stainless steel |
| Number of reaction bottle | 3 |
| Distance between dumping opening and ground (mm) | 450 |
| Filter opening | ¢80flange opening |
| Air exhaust device | 24#standard bucket valve |
| Dumping method | Glass dumpling valve,¢80flange opening |
| Exterior size(mm*mm*mm) | 490*490*1750 |
| Packing size(mm*mm*mm) | 1800*540*540 0.52 square |
| Packing weight(KG) | 60 |
Optional configurations | Main support | Tray type |
| Frame parts | Plastic spraying or PTFE |
Our laboratory glass and instruments are developed independently, we can manufacture according to customers' demands. |
Prod Model: |
ZF-20L/30L/50L |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Packing Size: |
1650*540*540 |
Xi'an HEB Biotechnology Co., Ltd., established in 2004, mainly manufacture Rotary Evaporator, Cylindrical Jacketed Reactor, Cryostat, Circulating Water Vacuum Pump, Circulating Bath, our products had passed ISO Certificate.
In recent year, we estalished good friendship with oversea customers, our products are sold to europen-American countries and Asian-African countries, our products including Cylindrical Jacketed Reactor, Cryostat, Rotary Evaporator, etc, our quality was recognized by oversea market, and the usage of product is very perfect.
Our factory located in Xi'an City the capital of Shaanxi, China. Factory's area for 8000m2, we own advanced technology and talent prefessional specialists to produce first-rate product and improve shortage of previous product, and we can customize it, and we can finish OEM order.
In 2006 year, we associated with QiXin instrument factory to research and develop commonly new production line, thanks to our cooperation each other, we can manufacture CO2 Incubator, Cooling Incubator, Shake Incubator, Blast Oven, Vacuum Oven, etc. And those products passed ISO certificate in 2007.
HEB Biotechnology owned big customer basement, and our annual quantity of sale have breakthoughted 10000units, and we assign our service team to important customer basement(Asia, Africa) to train and install our product. Our motto: First-Rate Service, First-Rate Quality.
Welcome to new-old customer to purchase our product, we will guarantee high quality, preferential price.
"First to be a good Man, then to do a good business". This is our way of doing business. We firmly believe that a good business relationship must be based on good quality of products, good people and good service. There is no other way out. We did so in the past, we are doing so right now and we will do so in the future. So, to corporate with HEB is to corporate with reliability. Time will prove it.
