Main parts and materials For---

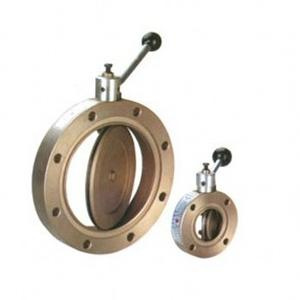

Vacuum flange type butterfly valve
| body | GS-C25,CF8,CF3 |
| disc | 2CR13,F304,F316 |
| packing | Flexible graphite,PTFE |
| oil cup | brass |
| stem | 2Cr13,F304,F316 |
Function and Specification of-------
Vacuum flange type butterfly valve
nominal pressure
(MPa)
| shell test(MPa) | sealing test(MPa) | Suitabletemp
(ºC)
| suitable madium |
| 1.6 | 2.4 | 1.76 | -20ºC-450ºC | water,steam,oil,etc. |
| 2.5 | 3.75 | 2.75 |
| 4.0 | 6.0 | 4.4 |
The valve body material, suitable temperature, suitable medium, pressure range of----
Vacuum flange type butterfly valve
| Body material | Suitable temperature | Suitable medium | Pressure range |
| Cast steel | ≤4250C | Water, steam, oil | PIN1.6--10 |
| Stainless steel | ≤3000C | Nitric acid, acetic acid | PIN1.6--10 |
| Stainless steel containing Mo | ≤3000C | Nitrogen,hydrogen,
ammonia, urea | PIN1.6--10 |
| MONEL | ≤3000C | Hydrogen, fluorine, acid | PIN1.6--10 |
Outline and connecting measurement of---------
Vacuum flange type butterfly valve
PN | DN | L | D | D1 | D2 | B | f | H | N- | H |
| 1.6 | 15 | 130 | 95 | 65 | 45 | 16 | 2 | 191 | 4-14 | 6 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 191 | 4-14 | 6 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 197 | 4-14 | 8 |
| 32 | 180 | 140 | 100 | 78 | 18 | 2 | 200 | 4-18 | 8 |
| 40 | 200 | 150 | 110 | 88 | 18 | 3 | 218 | 4-18 | 13 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 220 | 4-18 | 13 |
| 65 | 290 | 185 | 145 | 122 | 20 | 3 | 238 | 4-18 | 16 |
| 80 | 310 | 200 | 160 | 138 | 20 | 3 | 257 | 4-18 | 20 |
| 100 | 350 | 220 | 180 | 158 | 20 | 3 | 340 | 4-18 | 25 |
| 125 | 400 | 250 | 210 | 188 | 22 | 3 | 360 | 4-18 | 32 |
| 150 | 480 | 285 | 240 | 212 | 22 | 3 | 390 | 8-22 | 40 |
| 200 | 600 | 340 | 295 | 268 | 24 | 3 | 530 | 12-22 | 50 |
| 2.5 | 15 | 130 | 95 | 65 | 45 | 16 | 2 | 191 | 4-14 | 6 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 191 | 4-14 | 6 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 197 | 4-14 | 8 |
| 32 | 180 | 140 | 100 | 78 | 18 | 2 | 200 | 4-18 | 8 |
| 40 | 200 | 150 | 110 | 88 | 18 | 3 | 218 | 4-18 | 13 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 220 | 4-18 | 13 |
| 65 | 290 | 180 | 145 | 122 | 22 | 3 | 238 | 4-18 | 16 |
| 80 | 310 | 200 | 160 | 138 | 24 | 3 | 257 | 4-18 | 20 |
| 100 | 350 | 235 | 190 | 162 | 24 | 3 | 340 | 8-22 | 25 |
| 125 | 400 | 270 | 220 | 188 | 26 | 3 | 360 | 8-26 | 32 |
| 150 | 480 | 300 | 250 | 218 | 28 | 3 | 390 | 8-26 | 40 |
| 200 | 600 | 360 | 310 | 278 | 30 | 3 | 530 | 12-26 | 50 |
| 4.0 | 15 | 130 | 95 | 65 | 45 | 16 | 2 | 191 | 4-14 | 6 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 191 | 4-14 | 6 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 197 | 4-14 | 8 |
| 32 | 180 | 140 | 100 | 78 | 18 | 2 | 200 | 4-18 | 8 |
| 40 | 200 | 150 | 110 | 88 | 18 | 3 | 218 | 4-18 | 13 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 220 | 4-18 | 13 |
| 65 | 290 | 185 | 145 | 122 | 22 | 3 | 238 | 4-18 | 16 |
| 80 | 310 | 200 | 160 | 138 | 24 | 3 | 257 | 8-18 | 20 |
| 100 | 350 | 235 | 190 | 162 | 24 | 3 | 340 | 8-22 | 25 |
| 125 | 400 | 270 | 220 | 188 | 26 | 3 | 360 | 8-26 | 32 |
| 150 | 480 | 300 | 250 | 218 | 28 | 3 | 390 | 8-26 | 40 |
