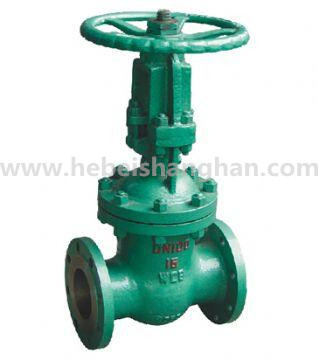

Vacuum-Isolating Gate Valves
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Model 61 Vacuum isolating stop valve
Chief features and usages:1/The main body of the series valve uses a casting and forging structure and has a double direction seal of parallel secondary semi-forced,double sealing and the motions of both the sealing face to its due position duue position due podition and the tapered block to wedge up are seprated to have zero leadage come ture.2/The sealing face is of a small frictional force if motion.Lightly opened and closed and has a self copensation function for wearing.3/Simple and compact sturcture easy to more than 10 years of long duration.4/A vacuum sealing structure is set in the sealing with the expansice material of high strength to completely isolate the system from air.5/Two connecting ways of flange and welding, two ways to drive of hand and electric operation. the valve can be used as the open and close device for the pipelines under the working temperature≤425°C,the working medium of water,steam or air ,especialy suitable to act as the vacuum isolating sealing for the system of eteam turbine's condesation and vacuum negative pressure in steam power plants. |
Specifications
1) Body: carbon steel
2) Nominal Diameter: 80mm
3) Media: Vacuum
4) Welding connection
Chief property and specification
Test pressure
Nominal pressure/PN/MPa | Seal test/MPa |
Shell strength |
Back seal test |
Seat test |
1.0 | 1.5 | 1.1 | 1.1 |
1.6 | 2.4 | 1.8 | 1.8 |
2.5 | 3.8 | 2.8 | 2.8 |
4.0 | 6.O | 4.4 | 4.4 |
6.4 | 8.6 | 7.O | 7.0 |
1O.O | 15.O | 11.O | 11.O |
Applicable
Product type | Applicable medium | Applicable temperature/°C |
41H 44H 944H-C 941H |
Water,Steam,Air | ≤425 |
41H(Y) 44H(Y)-I 944H(Y)-I 941H(Y) |
Water,Steam,Air | ≤550 |
Prod Model: |
ZH-25/40/64/100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Silver |
Suitable Medium: |
Oil , Gas , Water, and Other Liquids, Gases |
Valve Material: |
Stainless Steel,Carbon Steel,Steel,Grey Iron,Ducti |
Linking Method: |
Thread Links,Flange Link,Welded Link |
Valve Standard: |
API,GOST,Japanese Standard,German Standard |
Working Pressure: |
High Pressure,Low Pressure |
Material: |
Stainless Steel |
Application: |
Water Industrial Usage |
Connection Form: |
Inside Thread |
Actuator: |
Spurgear |
Seal Surface: |
2Cr13 |
