Vacuum Relief Air Inlet Valves, Vacuum Valves

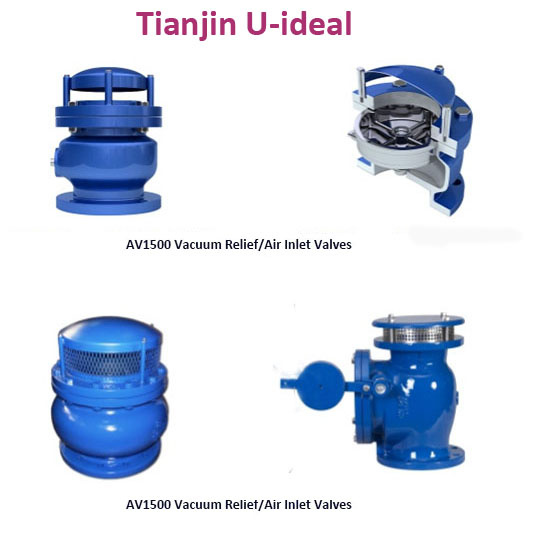

Tianjin U-ideal Vacuum Relief Air Inlet Valves, Vacuum Valves
Product Features
The air valve provides high capacity vacuum protection. When vacuum condition occurs the valve will admit full volume of air intake.
The special orifice design, a combination of stainless steel and E.P.D.M., assures long-term maintenance-free operation
Large orifice equals inlet size. Eliminates vacuum in waste water pipeline.
Design Features:
Vacuum Relief/Air Inlet Valves are normally closed valves and when the System Pressure becomes Negative -IT OPENS IMMEDIATELY- allowing air into the system to prevent a vacuum forming. When system pressure returns to positive, the Vacuum Relief/Air Inlet Valve closes air tight. Standard Vacuum Relief/Air Inlet Valves are designed to open with a minimal, 1/4 PSI, pressure differential across the orifice. Higher or lower relief settings are available to suit the application. Rated 125# and 250# class.

Air/Vacuum Valves are float operated, having a large discharge orifice, equal in size to the valves inlet. Air/Vacuum valves allow large volumes of air to be exhausted from or admitted into a water pipeline as it is being filled or drained. As the pipeline fills, water enters the Air Valve, raises the float and shuts-off. When draining the pipeline, the float drops, allowing air to enter, preventing vacuum, possible pipeline collapse or damaging water column separation. Air & Vacuum Valves are an efficient means to fill and drain pipelines.

Applications for Tianjin U-ideal float-type air vents include hydronic heating systems, water service lines, water storage tanks, centrifugal pumps, gas lines, solvent filters and similar equipment. Operation is completely automatic, and the simple design and quality mechanism make operation trouble-free and maintenance infrequent.

Why remove air from a water system?
Every building services engineer knows that air trapped in either a hot or chilled water system can cause trouble, such as excessive noise, corrosion and increased maintenance costs. Air can cause air locks which
inhibit the filling of the system or the priming of pumps. It can seriously affect the accuracy of flow measurement meters and regulating valves. Under extreme conditions it may even temporarily decommission plant.
Air and other incondensable gases considerably reduce heat transfer efficiency. A film of air 1 mm thick presents the same barrier to heat transfer as a wall of copper 13 m thick!
Entrapped air in any water system is a threat to thermal efficiency. It is particularly damaging in a chilled water system which does not have the natural deaerating ability of hot water.

Origin	Tianjin China
Brand	Tianjin U-ideal Instrument
Connection	Flange or thread
Export Markets	Global
Packing	Wooden Case or Carton

About us	Our company is specialized in the manufacture of valves, ,flow meters,level gauges,etc
Why Choose us
Rich experience	We have been engaged in machining for many years. Our company had good reputation with customers from American, Europe, North America, and Australia, India etc. We also have a good team for sale and quality control.
Good service	We will respond to you within 24 hours. We manufacture non-standard parts according to your drawings. And we will continue to serve you after sales and will be responsible for the mistakes from us.
Low price	The prices of our production are reasonable! The prices will be much better if your quantity is good.
Perfect quality	We have strict quality control from producing to delivery. Our company had strong technology support, 80% of our colleagues are master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality, good at modern concept of management.
Contact
If you have any question or requirements, please don't hesitate to contact us. Tel: 86-22 88971536 Fax: 86-22 88971536
