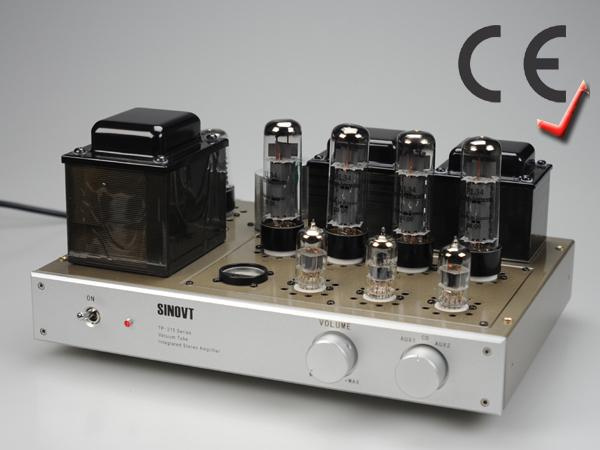

SINOVT E88CC-EL34 PP Z-011
(Tubes): 5AR4/5U4G*1
E88CC/6DJ8 *1
12AT7/ECC81/6201 *2
EL34/6CA7*4
(SPECIFICATIONS):
1. (Input sensitivity): 215mV
2. (Power output): 2*28W (RMS THD<1% 1KHz 8Ω )
3. (PM output): 2*18W (THD<5% 1KHz 8Ω )
3. (S/N Ratio): 90dB
4. (Input Impedance): 100KΩ
5. (Output Impedance): 4Ω . 8Ω
6. (AC Input): 220V
7. (Power Consumption): 150W
8. (Insulation Intensity): 250MΩ (DC2000V, 1min)
9. (Frequency Response):
15Hz - 45KHz -1dB
10Hz - 75KHz -3dB
10. (Dimension): 340*230*190(W-D-H)
11. (Net Weight): 13.6KG
