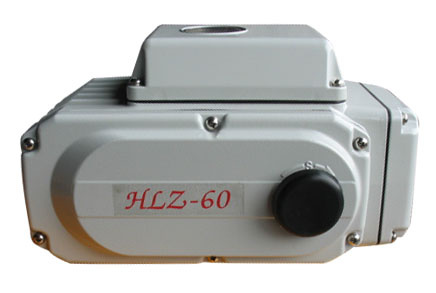

Model number: HLZ-60
OUTPUT TORQUE 20Nm-2000Nm
Performance parameter
Power supply(V): DC24, AC110, AC220, AC380
90° Motion times: 30/60S
Rotary angle and scope: 0-360
Motor power: 10-90kg
Rate current(A): 0.16-3.578A
Machine: Weight: 20Nm: 0.5kg, 50Nm: 2.0kg, 100Nm: 3kg, 200Nm: 8kg, 400Nm: 10kg...
Insulation resistance: DC24V: 100/250VDC AC110/220/380V: 100/500VDC
Voltage resistance rating: DC24V: 500VAC, AC110/220V: 1500VAC, AC380V: 1800VAC(1 Minute)
Protection level: IP68
Electriad connection: Each one ofG1/2water-proof cable connectors, electric power lines, signal lines
Environment temperature: -30-+60
Control circuit options: Standard type: Limit position switch. A type: With MID-position switch. B type: With potentiometer and MID-position switch. D type: With servo controller(regulatory)
Ruian Hongli Roboticized Meter Factory is a professional institution engaged in the implementation of electric actuators, electric valves and Automatic control system for the study, development, production and marketing services for a body corporate. HLZ leading enterprise products from the factory is a series of electric valve actuators foreign advanced technology, in light of the actual situation and meticulous design and manufacture new products. The products will be integrated into a design-driven devices and the transmission is small in size, light weight and appearance characteristics. Can be widely used in papermaking, medicine, food ,hemicals, petroleum, electricity, drainage and other industrial fields. A long time, the leadership of the factory to create social needs better performance, higher quality, greater price advantage of the product as their responsibility, strive to develop new products to the high praise and trust of the clients.
