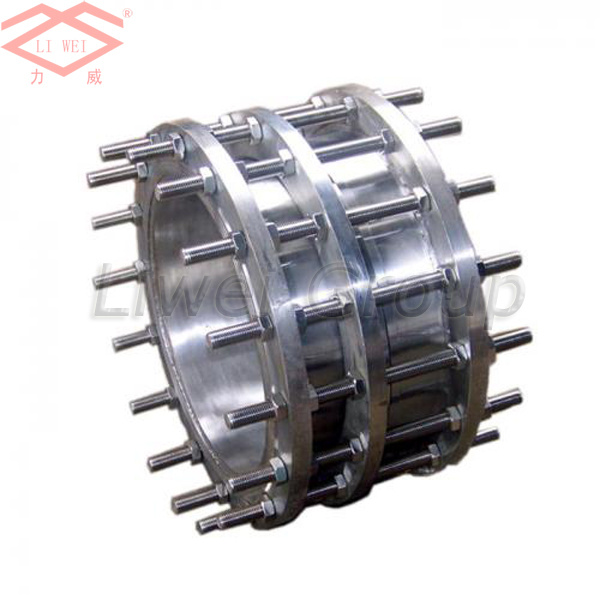

VSSJAF Stainless Steel Dismantling Joint
24 years experience
DN65mm-3200mm, easy installation
ISO9001 & ISO4001
Stainless Steel Expansion Joint Dismantling Joint
Product Performance
1, The product is manufactured through welding or metal casting;
2, The loosing part is sealed by echelon ring rubber.
3, Operated by gland and bolt and based on the principle of rubber's elastic deformation under pressure.
4, The seal ring will be deformed and static seal will be done between joint body and expansion pipe wall. 5, Metal and seal ring materials will be selected strictly.
6, High— Strength antifouling paint is painted outside.
7, The joint bolt is made of high— Strength carbon steel or stainless steel.
8, Inside pipe, it becomes available to compensate and release pipe blind plate propulsion and makes it easy to maintain and change pump and valve.
9, It is an ideal matching product for pipe's installation and operation.
Double-flange Loosing Force- transferring Joint Application Range
1, The metal product is functioned with pull and pressure resistance.
2, The metal product is excellent seal performance and easy installation.
3, It is widely used in power, metallurgy, drainage and sewage disposal to connect pump, valve and pipe, etc.
4, It also has some multi-directional displacement.
5, It makes it easy to install and maintain pipes.
However, force-transferring joints shall be used on the pipe corner and pump exit, because, the joints can transfer blind plate propulsion from pump start to pump and pipe through force— Transferring bolt and prevent pull to centralize close to pipe or pump or damage equipment by impact force. Other joints can be selected freely for other positions.
Our tenet: Your trust is our honor and will manufacture high quality products for you.
|
Technical Parameters for VSSJAF Double-flange Loosing Force- transferring Joint |
|
PN0.6MPa Unit (mm) |
|
DN |
Pip e Dia. |
Flange joint size |
Total Length |
Expansion
δ |
Weight
(kg) |
|
Flange outer dia. |
Dia. of bolt hole |
Bolt hole dia. |
Bolt |
|
No. |
Thickness |
|
65 |
76 |
160 |
130 |
14 |
4 |
M12 |
340 |
50 |
13.1 |
|
80 |
89 |
190 |
150 |
18 |
M16 |
15.1 |
|
100 |
114 |
210 |
170 |
21.6 |
|
125 |
140 |
240 |
200 |
8 |
27.6 |
|
150 |
168 |
265 |
225 |
34.1 |
|
200 |
219 |
320 |
280 |
42.4 |
|
250 |
273 |
375 |
335 |
12 |
58.8 |
|
300 |
325 |
440 |
395 |
22 |
M20 |
370 |
65 |
69.8 |
|
350 |
377 |
490 |
445 |
86.1 |
|
400 |
426 |
540 |
495 |
16 |
98.1 |
|
450 |
480 |
595 |
550 |
112.3 |
|
500 |
530 |
645 |
600 |
20 |
138.3 |
|
600 |
630 |
755 |
705 |
26 |
M24 |
173.4 |
|
700 |
720 |
860 |
810 |
24 |
211.1 |
|
800 |
820 |
975 |
920 |
30 |
M27 |
600 |
130 |
380.9 |
|
900 |
920 |
1075 |
1020 |
472.1 |
|
1000 |
1020 |
1175 |
1120 |
28 |
538.2 |
|
1200 |
1220 |
1405 |
1340 |
33 |
32 |
M30 |
749.8 |
|
1400 |
1420 |
1630 |
1560 |
36 |
36 |
M33 |
640 |
1034.8 |
|
1600 |
1620 |
1830 |
1760 |
40 |
1405.6 |
|
1800 |
1820 |
2045 |
1970 |
39 |
44 |
M36 |
1658.5 |
|
2000 |
2020 |
2265 |
2180 |
42 |
48 |
M39 |
1975.2 |
|
2200 |
2220 |
2475 |
2390 |
52 |
2460.7 |
|
2400 |
2420 |
2685 |
2600 |
56 |
2751.4 |
|
2600 |
2620 |
2905 |
2810 |
48 |
60 |
M45 |
710 |
150 |
2905.4 |
|
2800 |
2820 |
3115 |
3020 |
64 |
3175.8 |
|
3000 |
3020 |
3315 |
3220 |
68 |
3472.3 |
|
3200 |
3220 |
3525 |
3430 |
72 |
3824.6 |
|
|
|
PN1.0MPa Unit (mm) |
|
DN |
Pipe Dia. |
Flange joint size |
Total Length |
Expansion
δ |
Weight (kg) |
|
Flange outer dia. |
Dia. of bolt hole |
Bolt hole dia. |
Bolt |
|
No. |
Thickness |
|
65 |
76 |
185 |
145 |
18 |
4 |
M16 |
340 |
50 |
13.1 |
|
80 |
89 |
200 |
160 |
8 |
15.1 |
|
100 |
114 |
220 |
180 |
21.6 |
|
125 |
140 |
250 |
210 |
27.6 |
|
150 |
168 |
285 |
240 |
22 |
M20 |
34.1 |
|
200 |
219 |
340 |
295 |
42.4 |
|
250 |
273 |
395 |
350 |
12 |
58.8 |
|
300 |
325 |
445 |
400 |
370 |
65 |
69.8 |
|
350 |
377 |
505 |
460 |
16 |
86.1 |
|
400 |
426 |
565 |
515 |
26 |
M24 |
98.1 |
|
450 |
480 |
615 |
565 |
20 |
112.3 |
|
500 |
530 |
670 |
620 |
138.3 |
|
600 |
630 |
780 |
725 |
30 |
M27 |
173.4 |
|
700 |
720 |
895 |
840 |
24 |
211.1 |
|
800 |
820 |
1015 |
950 |
33 |
M30 |
600 |
130 |
380.9 |
|
900 |
920 |
1115 |
1050 |
28 |
472.1 |
|
1000 |
1020 |
1230 |
1160 |
36 |
M33 |
538.2 |
|
1200 |
1220 |
1455 |
1380 |
39 |
32 |
M36 |
749.8 |
|
1400 |
1420 |
1675 |
1590 |
42 |
36 |
M39 |
640 |
1034.8 |
|
1600 |
1620 |
1915 |
1820 |
48 |
40 |
M45 |
1405.6 |
|
1800 |
1820 |
2115 |
2020 |
44 |
1658.5 |
|
2000 |
2020 |
2325 |
2230 |
48 |
1975.2 |
|
2200 |
2220 |
2550 |
2440 |
56 |
52 |
M52 |
2460.7 |
|
2400 |
2420 |
2760 |
2650 |
56 |
2751.4 |
|
2600 |
2620 |
2960 |
2850 |
60 |
710 |
150 |
2905.4 |
|
2800 |
2820 |
3180 |
3070 |
64 |
3175.8 |
|
3000 |
3020 |
3405 |
3290 |
60 |
68 |
M56 |
3472.3 |
|
NO |
NAME |
QTY |
MATERIAL |
|
1 |
Body |
1 |
Q450-10 , Q235A |
|
2 |
Sealing |
1 |
NBR,CR,EPDM |
|
3 |
Follower |
1 |
Q450-10 , Q235A |
|
4 |
Limited short pipe |
1 |
Q235A |
|
5 |
Bolt |
n |
Q235A,35# |
|
6 |
nut |
n |
Q235A,20# |
