Valve for Copeland Compressor / Brass
| Price: |
US $ 3/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
Technical data :
1. The working air pressure : 3.0 Mpa ,hydraulic pressure :6.5 Mpa
2. Suitable medium:R22,R502,R407C,R143a,r410a act refrigerants and other refrigerating oil :

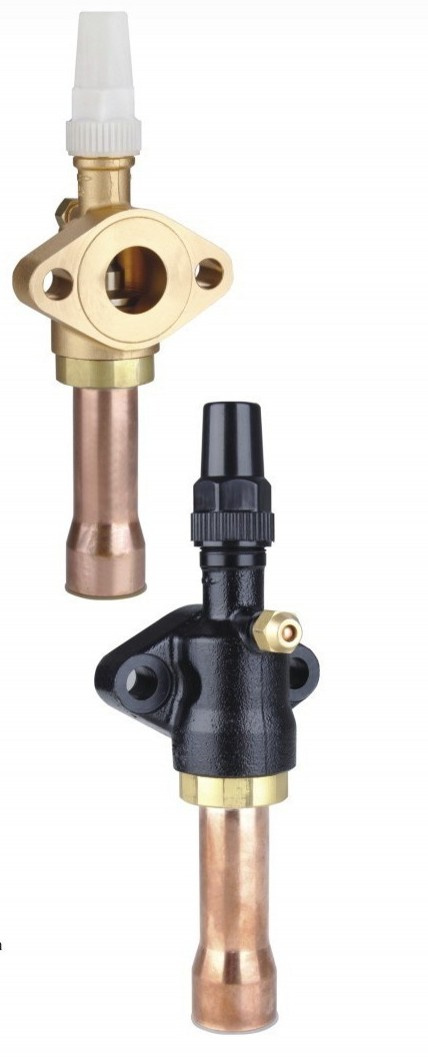

3.Suitable temperature :-50~+150 Technical data:1. The working air pressure: 3.0mpa, hydraulic pressure: 6.5mpa2. Suitable medium: R12, R22, R502, R407c, R134A, R404A, R410aect refrigerants and other refrigerating oil.3. Suitable temperature: -50° C+ 150° C4. Specification: 3p. 5P. 8P. 10P. 15P5. Material: Brass or cast iron6. This valve can divided into two types, suction valve (low pressure valve )and exhaust valve(high pressure valve). The specification of suction valve is 407, 408, 410, 410A. The specification of exhuast valve is 407, 407A, 405.7. This valves are installed on copeland semi-hermetic compressor. Like 3p compressor should be installed with 3p suction valve (407), 3p exhuast valve (407).notes:3P copeland suction valve: 407 3p copeland exhuast valve: 4075p copeland suction valve: 408 5 p copeland exhuast valve: 4078p copeland suction valve: 410 8p copeland exhuast valve: 407A10p copeland suction valve: 410 10 p copeland exhuast valve: 407A15P copeland suction valve: 410A 15p copeland exhuast valve: 405 | Model | A | B | C | ΦD | ΦF | ΦG | ΦH |
| J4BS/12A | 174 | 42 | 88.5 | Φ9 | Φ30 | Φ15 | Φ12 |
| J4BS/16A | 174 | 42 | 88.5 | Φ9 | Φ30 | Φ15 | Φ16 |
| J4BS/19A | 174 | 42 | 88.5 | Φ9 | Φ30 | Φ15 | Φ19 |
| J4BS/22A | 196 | 44 | 95 | Φ9 | Φ33 | Φ19 | Φ22 |
| J4BS/28B | 196 | 44 | 95 | Φ9 | Φ33 | Φ19 | Φ28 |
| J4BS/28A | 196 | 50.8 | 95 | Φ11 | Φ37.5 | Φ19 | Φ28 |
Application :
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Inside Screw Stem Globe Valve |
| Application: |
Forged Steel Globe Valve |

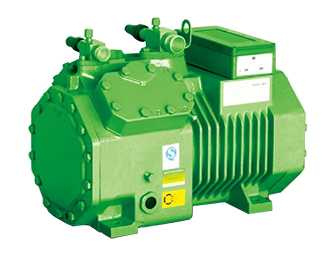

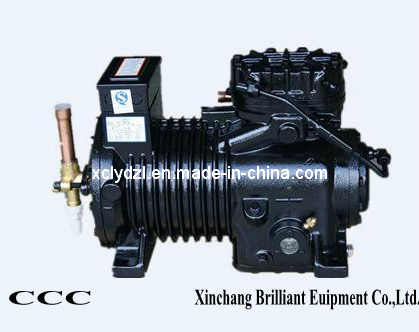

Zhejiang Brilliant refrigeration Equipment Co., Ltd, is located Ruao industrial park in Xinchang County, Zhejiang province., China. Our company specializes in producing semi-hermetic refrigeration compressor. Which contains Bizer type compressor and Copeland type compressor. We also produce right-angle pattern globe valve, straight-through type globe valve, compressor valve, Refrigeration valve. And we had in this field since 1992. The enterprise owns the consummate production equipments, the abundant technical force, the perfect quality control system, the quality personnel group so as to produce the quality products. Our objective is "to seek the better developments by our unceasing steps, produce the fine quality for good personality, pay due contribution to the society by the quality goods".
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
