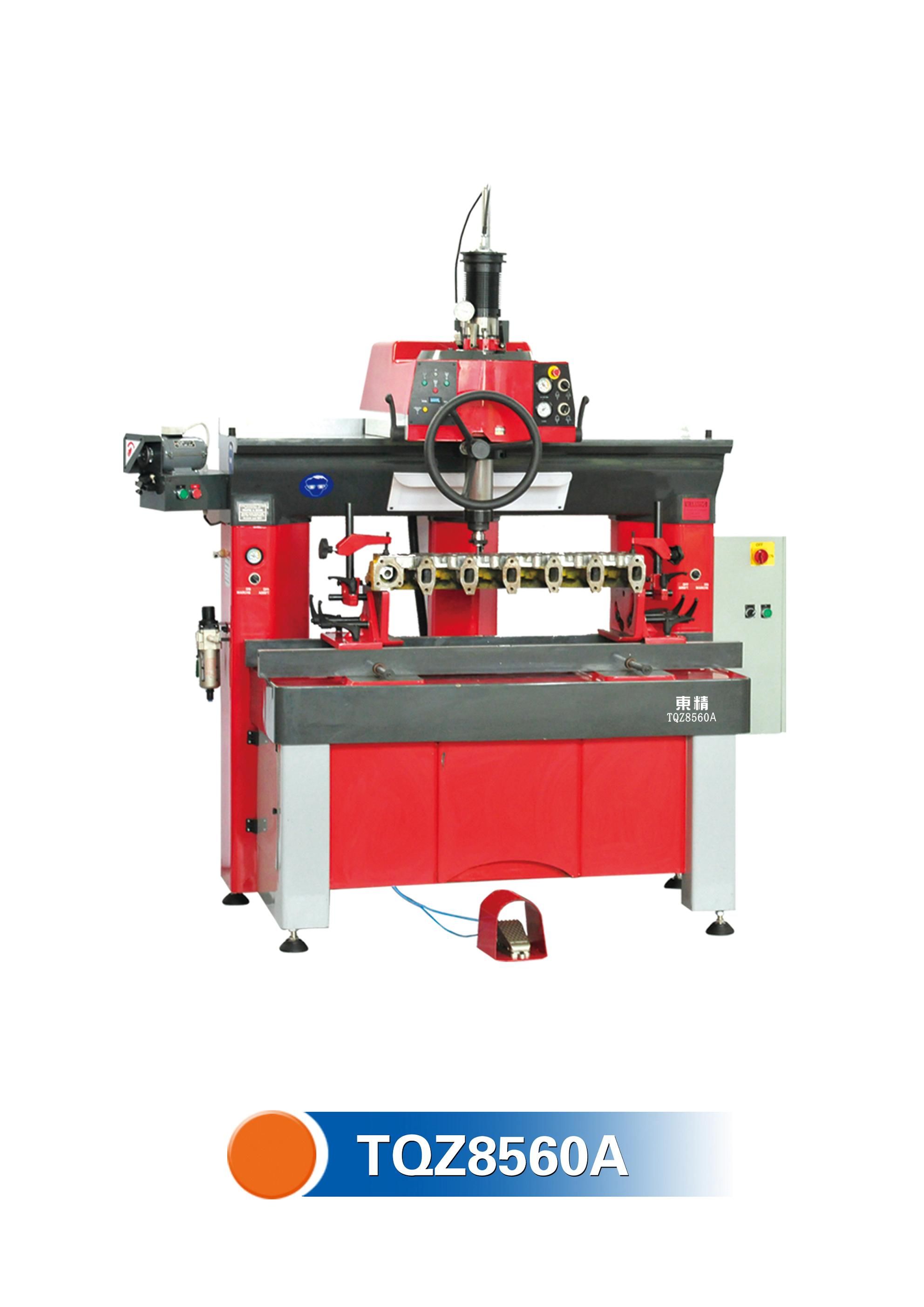

Valve Seat Boring Machine (B2-TQZ8560)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
TQZT8560 is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc. The machine features are air-floating, vacuum clamping, high positing precision, and easy operation.
The machine is set with grinder for cutter and vacuum check device for workpiece.
|
No. |
Specifications |
TQZ8560 |
TQZ8560A |
|
1 |
Boring dia. |
φ 14 - φ 60mm |
φ 14 - φ 60 mm |
|
2 |
(LxWxH)
Max. size of cylinder head for cutting |
1200× 500× 300mm |
1200x500x300mm |
|
3 |
Power of spindle motor |
1.2kw |
1.2kw |
|
4 |
Spindle speed (infinitely variable speed) |
0 -1000rpm |
0 -1000rpm |
|
5 |
Spindle swing angle |
5° |
5° |
|
6 |
Spindle stroke |
200mm |
200 mm |
|
7 |
Spindle move (cross x longitudinal) |
950 mm × 35mm |
950 mm × 35mm |
|
8 |
Fixture rotary angle |
+45° to -15° |
+45° to -15° |
|
9 |
Power supply |
220V/50HZ |
220V/50HZ |
|
10 |
Air supply pressure |
0.7Mpa |
0.7Mpa |
|
11 |
Air supply flow |
300L/min |
300L/min |
|
12 |
Machine weight (N/G) |
1050/1250kg |
1100/1300kg |
|
13 |
(LxWxH )Overall dimensions |
1480× 1050× 1970 mm |
1910× 1050× 1970 mm |
|
14 |
( LxWxH)Packing size |
1940× 1350× 2220 mm |
2230× 1350× 2270 mm |
| Prod Model: |
B2-TQZ8560 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Boring Dia.: |
16-60mm |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
Precision |
| Structure: |
Valve Seat Boring Machine |
