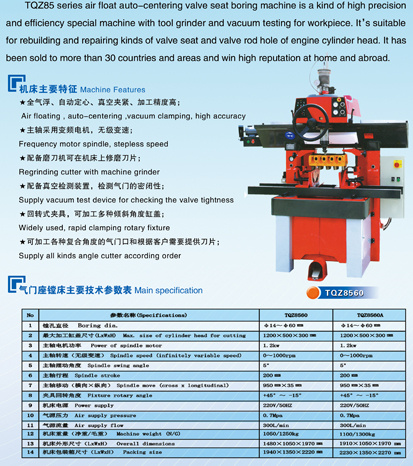

Tqz85 series air float auto-centering valve seat boring machine is a kind of high precision and efficiency special machine with tool grinder and vacuum testing for workpiece. ---
Ningxia Dahe Machine Tool (Group) Imp. & Exp. Co., Ltd. is made up of technical research, design, produce, sell and import and export department. The products and sell is square column vertical drilling machine series; vertical and horizontal machining center series; vertical and horizontal honing machine series (including honing material and tools) and special machining series.

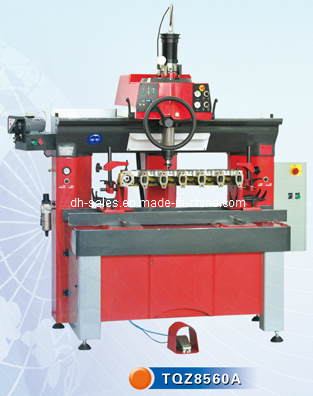

| No | Specifications | TQZ8560 | TQZ8560A |
| 1 | Boring dia. | φ14 ~ φ60mm | φ14 ~ φ60mm |
| 2 | Max. size of cylinder head for cutting (LxWxH) | 1200 ×500×300mm | 1200x500x300mm |
| 3 | Power of spindle motor | 1.2kw | 1.2kw |
| 4 | Spindle speed (infinitely variable speed) | 0 ~ 1000rpm | 0 ~ 1000rpm |
| 5 | Spindle swing angle | 5 ° | 5 ° |
| 6 | Spindle stroke | 200mm | 200mm |
| 7 | Spindle move (cross x longitudinal) | 950mm ×35mm | 950mm ×35mm |
| 8 | Fixture rotary angle | +45 ° ~ -15 ° | +45 ° ~ -15 ° |
| 9 | Power supply | 220V/50HZ | 220V/50HZ |
| 10 | Air supply pressure | 0.7Mpa | 0.7Mpa |
| 11 | Air supply flow | 300L /min | 300L /min |
| 12 | Machine weight (N/G) | 1050/1250kg | 1100/1300kg |
| 13 | Overall dimensions (LxWxH) | 1480 ×1050×1970mm | 1910 ×1050×1970 mm |
| 14 | Packing size( LxWxH) | 1940 ×1350×2220mm | 2230 ×1350×2270 mm |
