CHARACTERISTICS OF SHB-B95/95A:
1. Be suitable for the research experiment, small scale test and small scale production process which have the processes such as evaporation, distillation, crystallization, drying, sublimation, filtration and decompression, degassing.
2. The operation principle is the same as that of desk-top type pump.
3. Compared with the desk-top type pump, the bleed air flow is more, which applies to the vacuum demands with large bleed air flow.
4. Five taps can be used alone or in parallel. The bleed air flow is large with five-way pipe iin parallel, which can meet the demand of large scale Rotary Evaporator or Reaction Kettle.
5. The special machine is made by the famous electric manufacture ODM with fluorine rubber sealing, the inner of which can't be intruded by corrosive gas.
6. The body of the flume adopts polyvinyl chloride (PVC) material, the casing adopts carbon constructional quality steel cold rolling plate and the surface adopts electrostatic spraying.
7. Ejector with copper material, tee junction, back valve and gas-extraction nozzle adopt the PP material.
8. The pump body and impeller adopt stainless steel plate pressing (SUS standard).
9. Be furnished with truckles, which is convenient for moving and is suitable for the flexible configuration in labs and workshops.
10. Need to replace the water in the flume regularly to ensure the purity of water quality, the vacuum degree and to avoid dirt stains.
11. Can be used to extract corrosive gas, need to shorten the period of water changing.
12. SHB-B95A: The casing adopts stainless steel material (SUS standard), the rest is the same as SHB-B95.

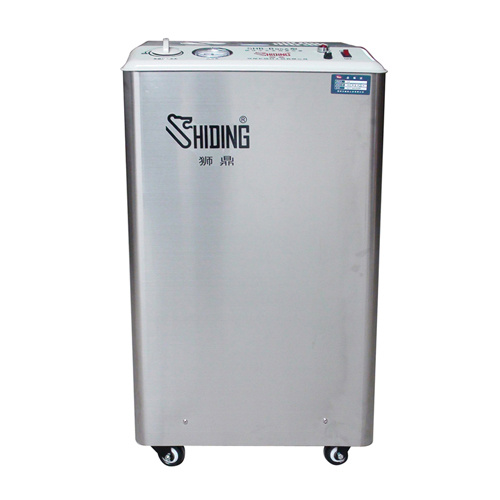

1. Multi-purpose Circulating Water Vacuum Pump adopts the latest technology to make the service life longer, antiseptic property better and more reliable.
2. Based on SHB-B95A type, the function and basic material are the same as those of SHB-B95A type.
3. Spray paint Teflon(PTFE)on the ejector and gas-extraction nozzle, gas pipeline adopts fluorine rubber material.
|
Model |
SHB-III/IIIA/IIIS/IIIT |
|
Power(W) |
180 |
|
Power supply(V/Hz) |
220/50 |
|
Flow(L/min) |
80 |
|
Lift(m) |
10 |
|
MaximumVacuumDegree(MPa) |
0.098 |
|
Single Tap Air Sucking Amount(L/min) |
10 |
|
Single Tap Air Sucking Amount(A) |
2 |
|
Safety functions |
Check valve |
|
Capacity of water storage tank(L) |
15 |
|
Materials of Water Tank |
PP |
|
Dimensions(mm) |
385L× 280W× 420H |
|
Weight(kg) |
11 |
