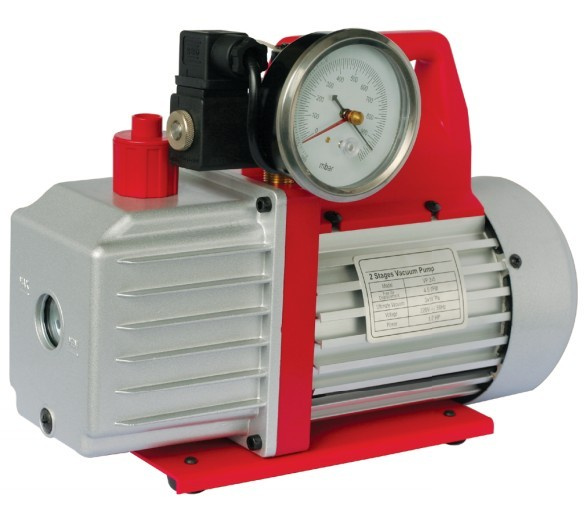

New Refrigerant Two Stage Vacuum Pump(VP215RVP260R)
VP2R Series new refrigerant Two Stage Vacuum Pump
Equipped with high quality solenoid valve to prevents oil backup into the system when the pump is turned off , or during a power failure.
Especially for R407C,R410a etcModel | VP215R | VP225R | VP235R | VP245R | VP260R | VP280R | VP2100R |
Flow Rate (cfm) | 220V~/50Hz | 1.5CFM 42L/min | 2.5CFM 70L/min | 3.5CFM 100L/min | 4.5CFM 128L/min | 6CFM 170L/min | 8CFM 226L/min | 10CFM 283L/min |
115V~/60Hz | 1.8CFM 50L/min | 3CFM 84L/min | 4CFM 114L/min | 5CFM 142L/min | 7CFM 198L/min | 9CFM 254L/min | 12 CFM 340 L/min |
Actual Ultimate Vacuum | 3Pa 25Microns | 3Pa 25Microns | 3Pa 25Microns | 3Pa 25Microns | 3Pa 25Microns | 3Pa 25Microns | 3Pa 25Microns |
Power(HP) | 1/4 | 1/3 | 1/3 | 1/2 | 3/4 | 1 | 1 |
Motor speed (r / min) | 220V~/50Hz | 2800 | 2800 | 1400 | 2800 | 1400 | 1400 | 1400 |
115V~/60Hz | 3400 | 3400 | 1700 | 3400 | 1700 | 1700 | 1700 |
Inlet Port (optional) | 1/4 SAE | 1/4 SAE | 1/4 SAE | 1/4 SAE | 3/8 SAE | 3/8 SAE | 3/8 SAE |
Oil Capacity (ml) | 180 | 280 | 360 | 350 | 700 | 600 | 600 |
Dimensions (mm) | 270x119x216 | 278x119x216 | 320x134x232 | 320x134x232 | 370x140x252 | 370x140x252 | 390x140x252 |
Weight(kg) | 6 | 7 | 11 | 11.8 | 15 | 15.5 | 16 |
