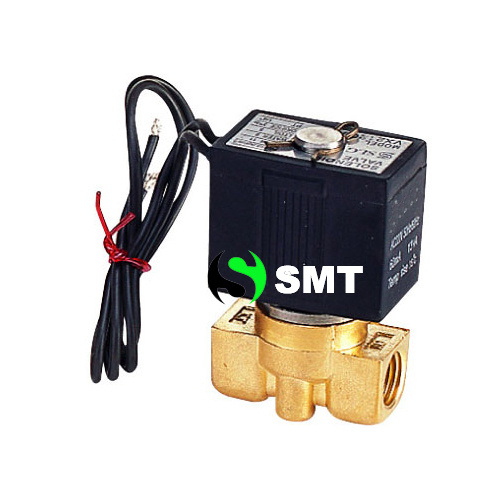

Vx2120 Solenoid Valve
| Price: |
US $ 8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Specification:
Model VX2120-08
Voltage12VDC,24VDC,110VAC and 220VAC
Current600 mA
Operation Mode Normally Closed (valve opens when energized)
Valve Type Direct Acting, Wet Armature
Inlet/Outlet Ports G1/4" Female (NPT Threads)
Max Pressure RatingAir: 145 psi / Water: 115 psi / Light Oil: 70 psi
Suitable Media Air, Water, Very Low Viscosity Fluids, Vacuum
Cv Value0.4
Temperature LimitationsMaximum Media Temperature 130'C Degree
Valve Response TimeVery Fast Acting
Duty CycleContinuous (can be left powered without overheating)
|
Model |
VX2120-06 |
VX2120-08 |
VX2120-10 |
VX2120-15 |
|
Working Medium |
Air,Water,Stream |
|
Motion Patern |
Direct Operated |
|
Type |
Normally closed |
|
Working Pressure |
0~1.0MPa |
|
Effective Cross Section Area |
3 |
13 |
|
Port Size |
1/8" |
1/4" |
3/8" |
1/2" |
|
Max. Ambient Temperature |
-5~150 o C |
-5~80 o C |
|
Seal material |
VITON |
NBR |
| Prod Model: |
VX2120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type': |
Normal Open and Normal Close |
| Size: |
1/8 to 2" |
| Pressure: |
0 to 12 Bar |
| Temperature: |
0 to 150 |
| Seal: |
NBR, Viton, Ptfm |
| Voltage: |
12, 24, 110, 220 |
| Type: |
Distribution of Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
AC Solenoid Valve |
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
