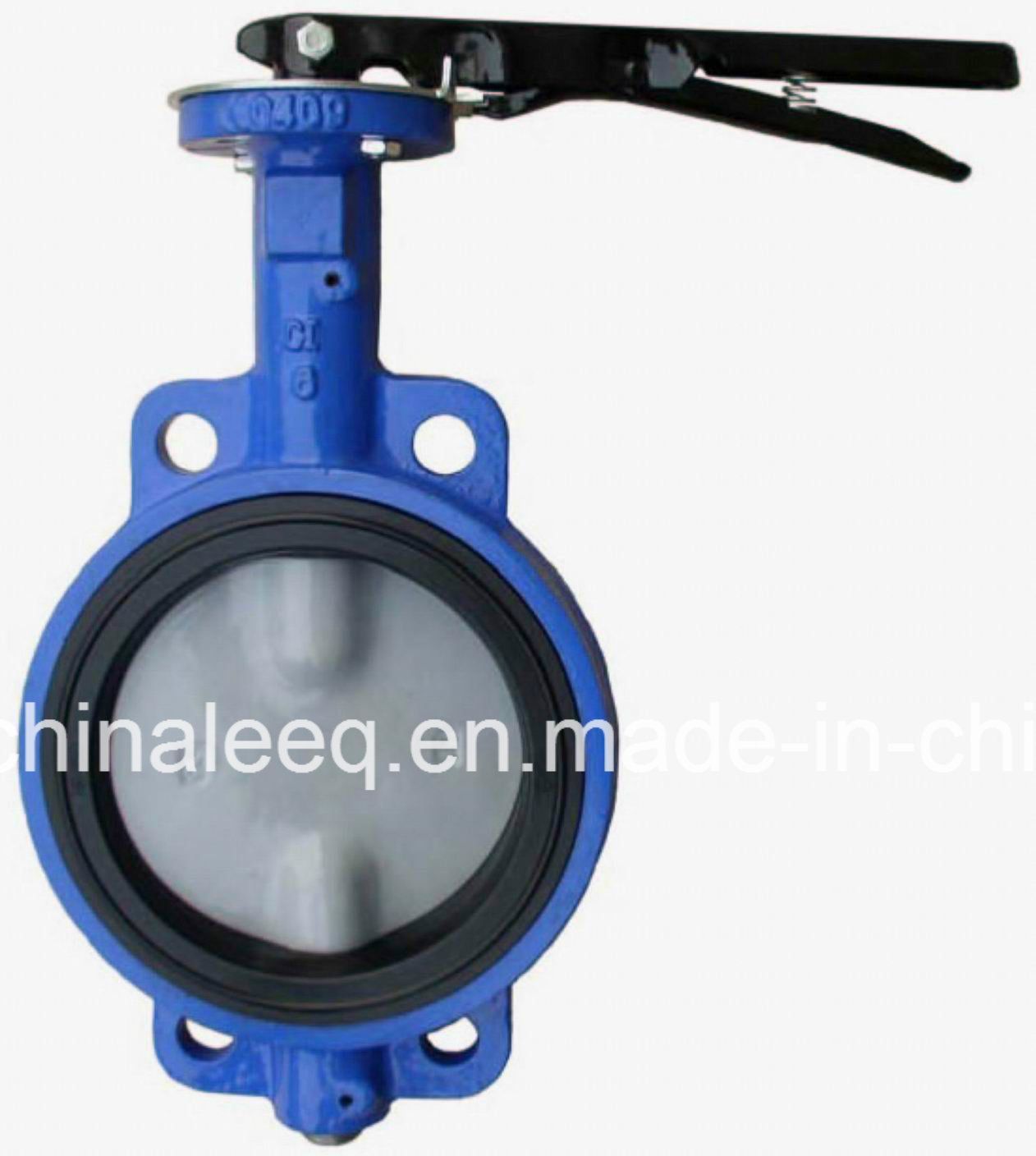

Wafer and Lug type butterfly valve with pin
Characteristics of Product:
1.Small in size and light in weight and maintaince. It can be mounted wherever needed.
2.Simple, compact structure, quick 90 degree on-off operation.
3.Disc has two-way bearing, perfect seal, without leakage under the pressure test.
4.Flow curve tending to straight-line. Excellent regulation performance.
5Various kinds of materials, applicable to different medium.
6.Strong wash and brush resistance and can fit to bad working condition.
7.Center plate structure, small torque of open and close.
Material Specification:
Part |
Material |
ASTM |
Body |
Cast Iron
Ductile Iron |
A126 Class B
A536 Gr.65-45-12 |
Disc |
Ductile Iron
Bronze
Stainless Steel 304
Stainless Steel 316 |
A536 Gr.65-45-12
B148 C95400
A351 CF-8
A351 CF-8M |
Shaft |
Stainless Steel 410
Stainless Steel 431 |
A276 S 410 00
A276 S 410 00 |
Seat Ring |
EPDM/NBR |
|
O-Ring |
EPDM/NBR |
|
Bushing |
PTEE
Bronze |
B62 C83600 |
Packing &delivery:
Payment:T/T,L/C,etc
Price Term:EX-Work,FOB,CFR,CIF
Delivery:according to your order
Package: Plywood cases or pallet ,or as customers' requirement
Our advantages :
1)As a leading valve manufacturer,we have 15 years 'producing experience,our main products are butterfly valve,butterfly check valves, ball valves,gate valves ,etc,they're quite popular among our customers.
2)Reliable factory with competitive price,short delivery time,long service life ,For dealers, we can assure you good profits,for end users, our valves will save large money for you.
3)Efficient sales team and excellent customer service.
4)Standard:ANSI ,API,DIN ,etc
5)We 've professional and technical QC team to ensure 100% products checking.
6)ISO 9001,CEcertificates,etc
7)According to the customer request,we can provide the drawing for the customer confirmation.
8)We can also manufacture according to customer's design.
For the convenince of you, when you inquiry plz tell us the details as follows :
1.product name
2.standard
3.size and weight
4.materials(mainly four parts):valve body ,valve disc ,valve stem ,valve seat
5.sealing requirements
6.connection way
7.driving mode
8.nominal temperature and pressure
9.medium
10.quantity
11.picture or drawing
