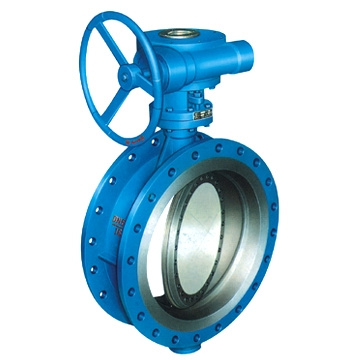

Wafer Butterfly Valve API Standard

Wafer Butterfly Valve API Standard
Price: US $ 30/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Specifications
Disc has two-way bearing which can be without leakage under the pressure test. Center disc structure, to make sure small torque

Body Type: Wafer/Lug
Size: DN40-DN1000 (1.540)
Nominal Pressure: PN10/PN16
Design Standard: API609; GB12238
Body Flange Drilling: DIN2505; ANSI125/150; BS4504; JIS B2210; AS2129; GB17241.6
Tope Flange: ISO5211
Face to Face: ISO5752; API609; MSS SP-67; GB12221
Test Inspection: API598; GB13927
Suitable Medium: Water, Sewage, Air, Oil, Salty, etc.
Operations: Lever, Worm gear, Electric Actuator and Pneumatic

Features:
1) Can be used in cutting off and regulating medium.
2) Easy installation and maintenance. It can be mounted wherever needed.
3) Simple, compact structure, quick 90-degree on-off operation, Minimized torque, energy saving
4) Disc has two-way bearing, which can be without leakage under the pressure test.
5) Center disc structure, to make sure small torque of open and close.
Prod Model: D73H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Wafer
Structure: Double-Eccentric Sealing
Seal Form: Auto Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Ultra Low Temperature (',T<-100??C)
Material Of Seal Surface: Soft Sealed
Application: Industrial Usage
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
