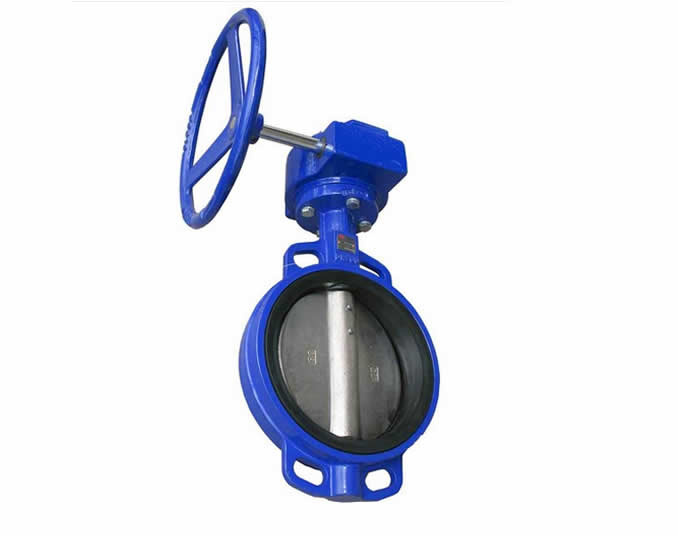

Wafer Butterfly Valve by Worm Gear Operator

Wafer Butterfly Valve by Worm Gear Operator
Price: US $ 11-100$
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Product Description Wafer Type Butterfly Valve, AS2129, table D, table E Features 1. CE & ISO9001 Certificated Enterprise 2. Excellent Quality 3. Fast Delivery 4. Reasonable Price Size: DN50-DN1200 End Flange: AS2129 Face to Face: API609, BS5155, DIN3202, ISO5752 Top Flange: ISO 5211 Normal Pressure: PN1.0/1.6Mpa(150/200PSI) Body: Cast Iron/Ductile Iron/WCB/ALB/CF8/CF8M Disc: DI/ALB/CF8M/CF8/Hastelloy Alloy/Monel Stem: SS416/304/316/431 Seat: Hypalon/EPDM/Neoprene/NBR/EPDM/Viton/Silicon/PTFE Suitable Temperature: -45C to 150º C Suitable media include water, sewage, sea water, air, foodstuff and oil. They are suitable for handles, gear operators, electric and pneumatic control actuators
Prod Model: TS038
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn50-1200
Material: Cast Iron, Ductile Iron
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Soft Sealed
Connection Form: Wafer
Structure: Centre Sealing
Seal Form: Force Sealed
Application: Household Usage
Working Temperature: 120c
Tianjin Tanggu tianshun valve Industries Limited is located in China's largest production base of the valve; High - Tech Development Zone, Tanggu District, Tianjin Marine, was professional design and manufacture all kinds of butterfly valves Factory production ( ISO9002 certification ), the annual production capacity of 150, 000 sets. The company's wafer butterfly valve, butterfly valve, Flanged butterfly valves are exported to Europe, Africa, Middle East and Southeast Asian countries and regions, special don't be eco - friendly nylon coating, the company developed and produced series of PTFE coating, anti-corrosion butterfly valve, gathered at home and abroad advanced - pin connection technology, spray technology, with the sealing property is reliable (No leaks ), corrosion resistance and high temperature resistant, non-toxic, harmless, operating torque features of small, safe and reliable running, was praised by users at home and abroad.
