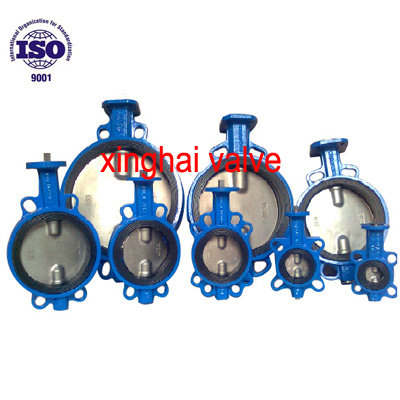

SpecificationA & LT Type Butterfly Valve Top Quality
1.ISO
2.Best quality with lower price

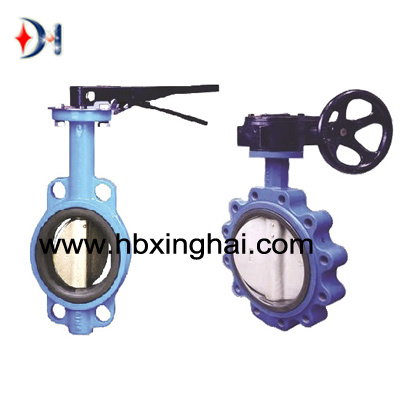

3. A & LT type for your choose
Our company engaged in butterfly valve manufacturing, we have A\ LT Type\ no pin products, which is integrated with casting, machining and assembling as a whole. Our products through the ISO9001 international quality certification, has a professional quality control system. Provide customers with timely and satisfactory products and services.
Nominal Diameter: DN25-DN1000
Nominal Pressure: 1.0-1.6Mpa
Operation Way: Handle\Eddy\Electric\Peneauatic
Product Categories: Pined butterfly valve\No pin butterfly valve\ANSI two shafts butterfly valve.
Material of main parts:
Parts Name: Materials
Body: Grey cast iron\Ductile cast iron\Stainless steel
DISC: Nickel-plated ductile iron\Aluminum Bronze\Stainless steel
Seat: Buna-N, EPDM, PTFE
Stem: 410SS, 304SS, 316SS, Carbon steel

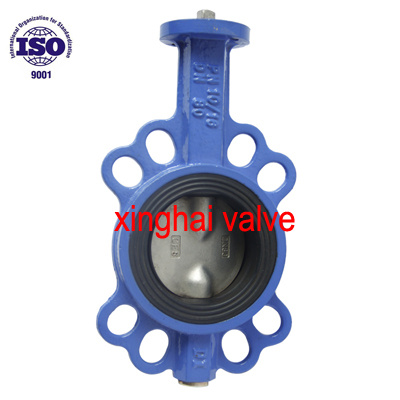

A Type butterfly vavle with 4 flange holes
Outline and connection dimension
Note:
1. The numerator of 1 item is 1.0Mpa,the denominator is 1.6Mpa.
2. The numerator n-ø3 item is GB921199-88,ISO2084,BS4504, 1.0MPais of DIN standard system. The denominator is the dimension of ANSI B16.1.
3.The H2, dimensions may be changed into lengthened stem butterfly vavle.
Size | H1 | H2 | H3 | L | ø1 | ø2 | n-ø3 |
mm | inch | ANSI B16.1 | GB9119-88 | ISO2084 | BS4504 | DIN |
50 | 2" | 70 | 130 | 32 | 45 | 120.65 | 125 | 125 | 125 | 125 | 88 | 4-ø18/19 |
65 | 2 1/2" | 80 | 134 | 32 | 48 | 139.7 | 145 | 145 | 145 | 145 | 108 | 4-ø18/19 |
80 | 3" | 98 | 146 | 32 | 49 | 152.4 | 160 | 160 | 160 | 160 | 118 | 4-ø18/19 |
100 | 4" | 114 | 167 | 32 | 55 | 190.5 | 180 | 180 | 180 | 180 | 156 | 4-ø18/19 |
125 | 5" | 122 | 180 | 32 | 58 | 215.9 | 210 | 210 | 210 | 210 | 181 | 4-ø18/22.4 |
150 | 6" | 135 | 195 | 32 | 59 | 241.3 | 240 | 240 | 240 | 240 | 210 | 4-ø22/22.4 |
200 | 8" | 165 | 240 | 39 | 64 | 298.45 | 295 | 295 | 295 | 295 | 260 | 4-ø22/22.4 |
250 | 10" | 203 | 274 | 39 | 70 | 361.95 | 350/355 | 350/356 | 350/357 | 350/358 | 321 | 4-ø22/25.4 |
300 | 12" | 237 | 307 | 39 | 80 | 431.8 | 400/410 | 400/411 | 400/412 | 400/413 | 384 | 4-ø22/25.4 |
350 | 14" | 267 | 368 | 45 | 80 | 476.25 | 460/470 | 460/471 | 460/472 | 460/473 | 400 | 4-ø22/28.4 |
400 | 16" | 298 | 400 | 51 | 90 | 539.75 | 515/525 | 515/526 | 515/527 | 515/528 | 465 | 4-ø22/28.4 |
450 | 18" | 318 | 422 | 51 | 109 | 577.85 | 565/585 | 565/586 | 565/587 | 565/588 | 514 | 4-ø26/31.8 |
500 | 20" | 349 | 479 | 64 | 135 | 635 | 620/650 | 620/651 | 620/652 | 620/653 | 559 | 4-ø26/31.8 |
600 | 24" | 410 | 562 | 71 | 156 | 749.3 | 725/770 | 725/771 | 725/772 | 725/773 | 686 | 4-ø30/35.1 |
700 | 28" | 520 | 624 | 72 | 169 | | 840 | 840 | 840 | 840 | 795 | 4-ø30 |
800 | 32" | 591 | 672 | 83 | 195 | 977.9 | 950 | 950 | 950 | 950 | 900 | 4-ø30/41.1 |
900 | 36" | 611 | 768 | 77 | 211 | 1086 | 1050 | 1050 | 1050 | 1050 | 1002 | 4-ø33/28-ø41 |
1000 | 40" | 665 | 823 | 85 | 229 | | 1160 | 1160 | 1160 | 1160 | 1111 | 4-ø36 |
1200 | 48" | 955 | 880 | 206 | 249 | | 1380 | | | | | 28-ø39 |
1400 | 56" | 991 | 1015 | 226 | 390 | | 1590 | | | | | 36-ø42 |
1600 | 64" | 1116 | 1145 | 199 | 457 | | 1820 | | | | | 36-ø48 |
