Product Description

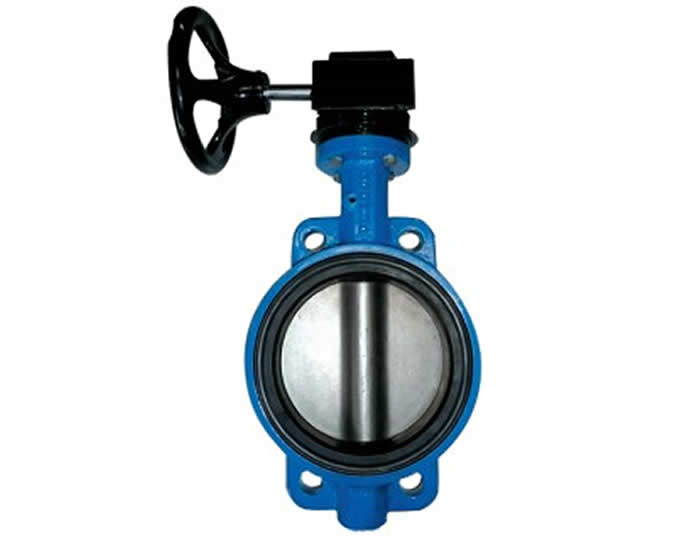

Wafer Butterfly Valve with Four holes and Groove Seat
Size: DN50-DN600
Flange: DIN, BS, ISO, ANSI, AS, JIS
Face to Face: API609, BS5155, DIN3202, ISO5752
Top Flange: ISO 5211
Normal Pressure: 1.0/1.6Mpa(150/200PSI)
Body: CI/DI/WCB/ALB/CF8/CF8M
Disc: DI/ALB/Rubber Lined Disc/CF8M/CF8/Hastelloy Alloy/Monel
Stem: SS416/304/316/431
Seat: Hypalon/EPDM/Neoprene/NBR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/
Suitable Temperature: -45C to 150º C
Features:
1. Structure simple compact, the weight is light, 90' revolves, the switch is rapid
2. Designs reasonably, the assembling and dismantling is easy, to be advantageous
For the service
3. Uses the eccentric structure, reduces the seal packing collar the friction, lengthens
The valve service life
4. Completely seals, divulges for zeroMaterials
Tianjin Tanggu tianshun valve Industries Limited is located in China's largest production base of the valve; High - Tech Development Zone, Tanggu District, Tianjin Marine, was professional design and manufacture all kinds of butterfly valves Factory production ( ISO9002 certification ), the annual production capacity of 150, 000 sets. The company's wafer butterfly valve, butterfly valve, Flanged butterfly valves are exported to Europe, Africa, Middle East and Southeast Asian countries and regions, special don't be eco - friendly nylon coating, the company developed and produced series of PTFE coating, anti-corrosion butterfly valve, gathered at home and abroad advanced - pin connection technology, spray technology, with the sealing property is reliable (No leaks ), corrosion resistance and high temperature resistant, non-toxic, harmless, operating torque features of small, safe and reliable running, was praised by users at home and abroad.
