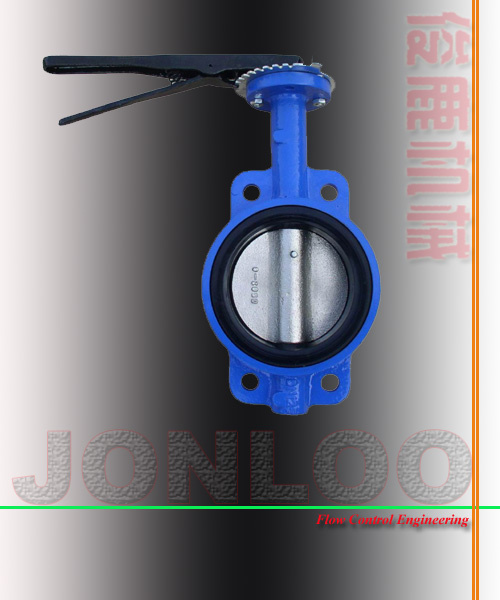

Wafer butterfly valve
PN 10/16/25
DN50-1200 or 2-48"
With ISO 9001 and CE certificate.
Feature:
1) Standard for face to face: DIN, BS, API, MSS, ANSI, JIS, ISO etc
2) Diverse flange connection standard: ANSI 125/150, BS4504 PN10/16, AS2921 D/E, JIS 10K, DIN2501 PN10/PN16 etc.
3) Connection Manner: Wafer Connection
4) Inspection and Test as per API598, GB13927 etc.
5) Minimized operating torque, energy saving
6) Quick on-off operation and Excellent regulation performance
7) Wide selection of materials, application for various medium like fresh water, sewage, sea water, air, vapor, acid and so on.
Material:
A) Body: Ductile iron, cast iron, stainless steel, WCB, Al bronze or other materials you require.
B) Disc: Ductile iron, cast iron, stainless steel, carbon steel, Al bronze or other materials you require.
C) Seat: EPDM, NBR, PTFE, VITON
D) Stem: Carbon steel, SS304, SS416, SS431
8) Working temperature: -10. C- 120. C
9) Long working life without leakage
Jonloo Valves have been produced in China for years and are recognized as the premier manufacturer of industrial steel valves. By leveraging advanced engineering capabilities and innovation, we have created quality assured valves to meet critical industrial needs.
The valves are grouped into the broad categories of gate, globe, check, ball, butterfly, safety valves, etc, in sizes varying from 1/2" to 80", with pressure ratings from 150LB to 2500LB. All of Jonloo valves are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. Jonloo valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.
