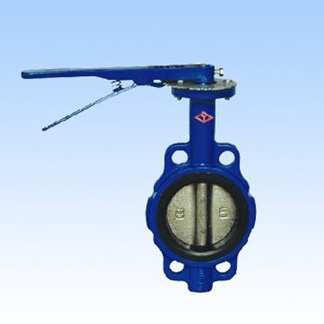

Wafer butterfly valve
Cast iron
DN40-DN800
GB, GOST, BS, DIN, ANSI
Wafer butterfly valve
1)Wafer type butterfly valve: Designed according to BSEN593 and MSS SP-67 and API 609 and compatible with ANSI 125/150, BS4504, DIN PN10/PN16 flanges
2)Size: DN40-350mm
3)Rating: PN10/16, ANSI125/150
4)Material of main parts: Body: Cast iron, ductile iron, stainless steel, cast steel (WCB) Disc: Monel, ductile iron, stainless steel, Al-bronze, ductile iron with nylon coated Seat: EPDM or NBR or PTFE or VITON or vulcanized in body Stem: SS416 or SS316 or Monel Pin: SS316 or Monel Operated: Handle or wormgear, pneumatic, electric actuator
Zhejiang Zhongcheng Valve Co., Ltd. is a professional manufacturer of parallel slide valves, eject valves and knife gate valves. Through years' development and innovation, the company is now experienced in manufacture and development, becoming a large-scale modern enterprise. Advanced management system and production facility and well-organized, complete means of testing and inspection are the assurance of top product quality. The company carries out production in strict accordance with GB in China, API in US, and DIN in Germany. The knife gate valves, parallel slide valves, and eject valves present a fine solution regarding abrasion resistance against solid, powder and sludge mediums in such sectors including electricity generation, petrochemical industry, chemical industry, papermaking, urban construction, sewage disposal, environmental protection, metallurgy, cement industry, etc.
The principal materials for the products include cast iron, cast steel, carbon steel, and stainless steel. The mode of drive includes manual transmission, gear transmission, pneumatic transmission, and motor transmission. The products are widely used in such sectors including petroleum industry, chemical industry, papermaking, alkali industry, etc. High remarks have been received from clients and dealers.
When facing both opportunities and challenges in this new century, Zhongcheng is providing satisfying products with top class quality and services. We sincerely welcome friends from home and abroad for business discussion and for a brilliant future jointly.
