Product Description

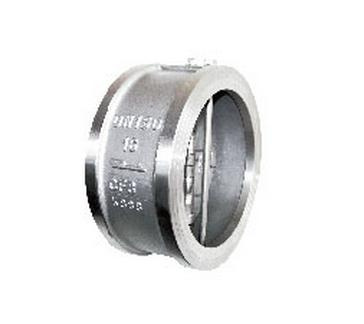

Dual plate check valve
1) Size: 2" - 24"
2) Class: 150lb
Material: Cast Iron, Ductile iron,WCB, CF8, CF8M, CF3, CF3M etc.
1. Design & Manufacture Std.: API594, ASME B16.34, API 6D, JISB2074-JISB2084, BS1868
2. Flange Connection ASME B16.5, ASME B16.47, JISB2212-JISB2214, DIN2543-2550
3. Face to Face Std.: ASMEB16.10, API 6D, JISB2002, DIN3202, EN558
4. Test Standard: API598, API 6D JISB2003
Features:
1. Small compact, easy in maintenance
2. Quick-close action
3. Easy instalation, it can be installed on horizontal and vertical both directions pipes
4. The valve is tightly sealed, no leakage
5. Safe and reliable in operation, high interference-resistance
MATERIALS LIST
Body | Cast iron GG25 |
| Ductile Iron GGG40 |
| Stainless Steel CF8M/SS316 |
| Disc | Stainless Steel SS316/SS304 |
| AL Bronze |
| Carbon Steel |
| Seat Gasket | Rubber NBR/EPDM |
| Spring | Stainless Steel |
| Axle | Stainless Steel |
| Washer | TEFLON |
