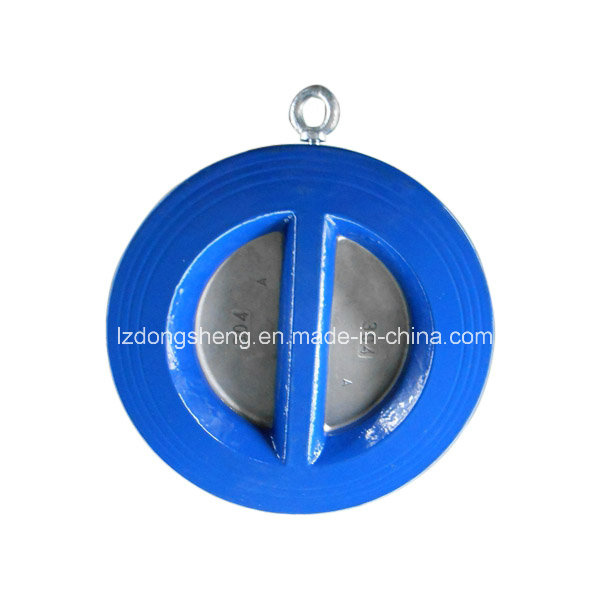

Wafer Dual Plate Check Valve

Wafer Dual Plate Check Valve
Price: US $ 1.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P
Double plate check valve wafer type

SPLIT DISC-Cast iron body with epoxy coating and split disc design (Bronze Disc) Wafer connection ANSI 125/150 EPDM, NITRILE (Buna N) bearing. Stainless steel spring hinge pin. Lifting ring standard. Above 4".
Temp Max: 180° F(80° C) Pressure Max: 200 PSI
Operation:
Two independent discs, hinged on a common shaft are held parallel against an elastomer seat by torsional spring force
Installation:
Split Disc check valves are designed for simple Flange-supported installations between standard flanges in the horizontal or in the vertical flow up position. For horizontal flow applications valve must be installed with disc hinge pin in the vertical position to insure proper operation.
Applications:
General Utilities; Chemical; Power Generation; Oil Field; HVAC; Marine; Petrochemical; Steel Industry;
Mechanical Contractors; Commercial Construction

Description:
1. Products Name: DUAL PLATE CHECK VALVE WAFER TYPE
2. Working pressure: PN10/16/25
3. Tests: API598; DIN3230
4. Flange standard: DIN2501 PN10/PN16; BS4504 PN10/PN16;
BS10 TABLE"D"/"E" /JIS2220 10K/16K; ANSI125/150
5. Face to face: ANSI125/150; DIN3203 K3-1999
6. Applications: Water, industrial systems
7. Working temp: EPDM: -10° C~+120° C/NBR: -10° C~+80° C/VITON: -23° C~+150° C/
8. Medium: Fresh water, sea water, waste water, food stuff, steam, all kinds of oil, all kinds of acid and alkaline liquid etc


MATERIALS LIST:
ItemDescriptionAvailable   materials
1BodyGrey cast iron GG25; Ductile ironGGG40; CF8M
2SpringStainless steel 316
3DoorStainless steel 316,304; Al.Bronze; Carbon steel
4Lifting Eye Bolt Steel
5Seat GasketBUNA-N   RESILIENT SEAT MOLDED TO BODY
6Hinge pinStainless steel 316
7Stop pinStainless steel 316
8GasketTeflon
9Stop pin retainer Steel
10Hinge pin retainer Steel

Prod Model: H74X-16Z
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size Range: 1.5 Inch to 24 Inch (Dn40-Dn600)
Seat: Metal/ EPDM / Buna-N/ Vion
Class: ANSI 125 / 250
Flange: DIN,AISI,JIS,Bs
Brand: as Per Your Request
Advantage: Long Working Life Without Leakage
Structure: Butterfly
Function: Nrvg Silence
Application: Household Usage
Connection Form: Wafer
Material: Cast Iron , Stainless Steel , Bass
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.

We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.

We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
