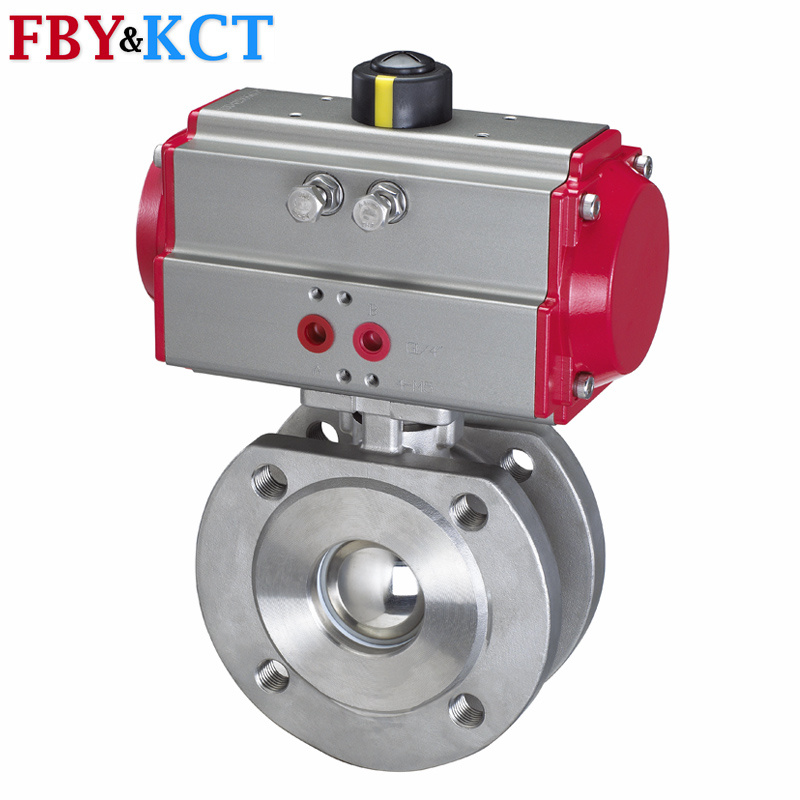

Wafer Flanged End 316 Material 150lbs Pneumatic Ball Valve

Wafer Flanged End 316 Material 150lbs Pneumatic Ball Valve
Price: US $ 20-500/Piece
Trade Terms: FOB,CFR,FCA
Min Order: 1/Piece
Pay Type: T/T
Product Explanation:

Wafer Pneumatic Ball Valve

Applicable Standards

Working Pressure: PN16/40

Temperature Range: -20-350 oC

Suitable medium: Water, Oil, Gas, and some corrosive liquid

Design: GB/T12237/1989

End Flange: JB79

Fire Safe: API 607 th 1993

Inspection & Testing: GB/T13927-1992
No. Parts Description Material
1 Body CF8M CF8 WCB
2 Bonnet CF8M CF8 WCB
3 Ball SS316 SS304
4 Seat PTFE  PPL
5 Stem SS316 SS304 2Gr13
6 Anti-Static SS304
7 Stem Gasket PTFE
8 Thrust Washer PTFE
9 Packing PTFE        Expanded Graphite
10 Transition Washer SS304
11 Packing Ring SS304
12 Belleville Washer SS304
13 Nut SS304
14 Loose Resistant Cover SS304
15 Handle Nut SS304
16 Stop Plate SS304
17 Handle SS304
18 Handle Cover Plastic
19 Stop screw SS304
20 Set Screw SS304
21     Handle SS304
22 Spanner CF8
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage
Function: Open and Close The Pipe
Connection Form: Wafer and Flanged
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.

In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.

KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.

According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.

Welcome Friends to contact us from all over the world to establish business with us.
