Product Explanation:

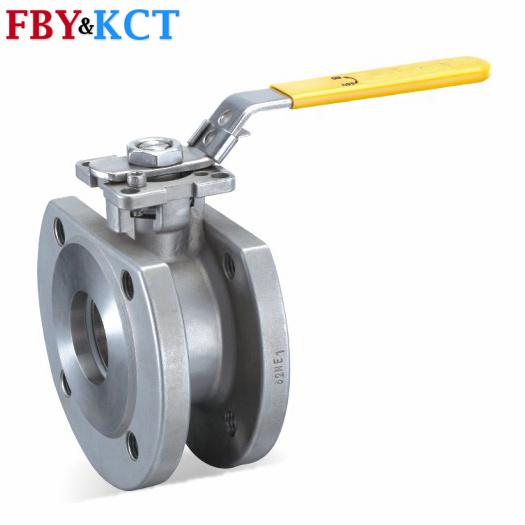

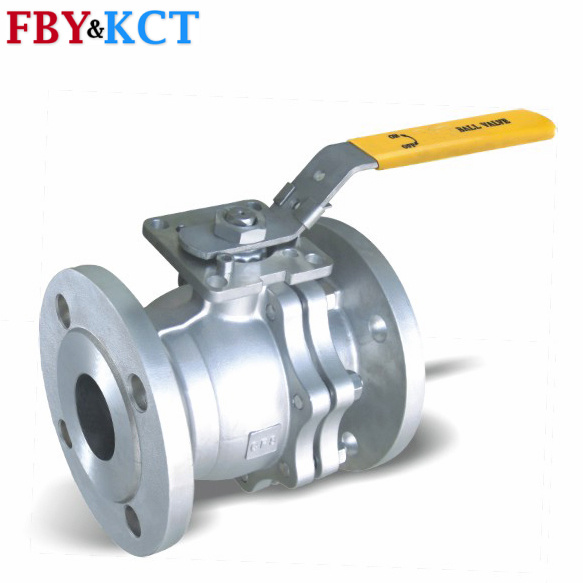

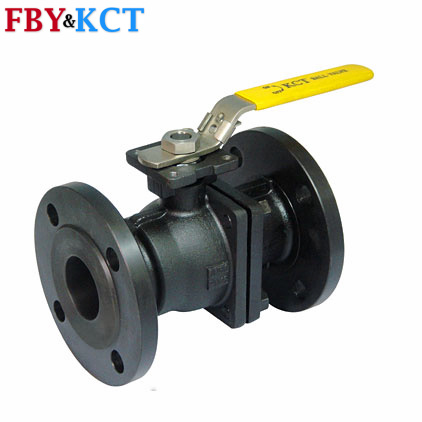

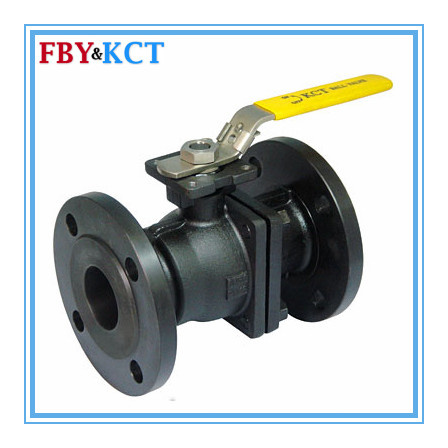

Manual operated stainless steel ball valve Manual Operated SS Ball Valve
Class 150~300 Flaoting Ball Valve
Detailed Product Description:
Two-piece Body, Floating Ball, Buint-in ISO5211 direct mounting pad
Full silicasol technology
Full or Reduced bore, Blowout Proof Stem
Fire safe design
Anti-static devices for ball-stem body
Double stem sealing to comply with TA-LUFT requirements
Pre-Load 2 belleville washer to self-adjust packing
Body&Cap material:WCB CF8(304) CF3(304L) CF8M(316) CF3M(316L)
Standards application
Design and Manufacture: API 608, ASME B16.34
Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Fire-safe: API 607, 4th 1993
Test and inspection: API 598, API 6D
|
No. |
Parts Description |
Material |
|
1 |
Body |
CF8M |
CF8 |
WCB |
Ti |
|
2 |
Bonnet |
CF8M |
CF8 |
WCB |
Ti |
|
3 |
Ball |
SS316 |
SS304 |
Ti |
|
4 |
Seat |
PTFE RPTFE PPL |
|
5 |
Nut |
A193-B8 |
A193-B7 |
A193-B8 |
|
6 |
Stem |
SS316 |
SS304 |
2Gr13 |
Ti |
|
7 |
Anti-Static |
SS304 |
|
8 |
Thrust Washer |
PTFE Expanded Graphite |
|
9 |
Packing |
PTFE Expanded Graphite |
|
10 |
Transition Washer |
RPTFE Expanded Graphite |
|
11 |
Packing Ring |
SS304 |
|
12 |
Belleville Washer |
SS304 |
|
13 |
Nut |
SS304 |
|
14 |
Loose Resistant Cover |
SS304 |
|
15 |
Nut |
SS304 |
|
16 |
Handle (1/2" ~3" ) |
SS304 |
|
17 |
Handle Cover (1/2" ~3" ) |
Plastic |
|
18 |
Stop Plate (1/2" ~3" ) |
SS304 |
|
19 |
Seal Washer |
PTFE Expanded Graphite |
|
20 |
Steel Tube (4" ~8" ) |
Galvanizde Steel Tube |
|
21 |
Spanner (4" ~8" ) |
CF8 |
|
22 |
Stop Bolt |
SS304 |
