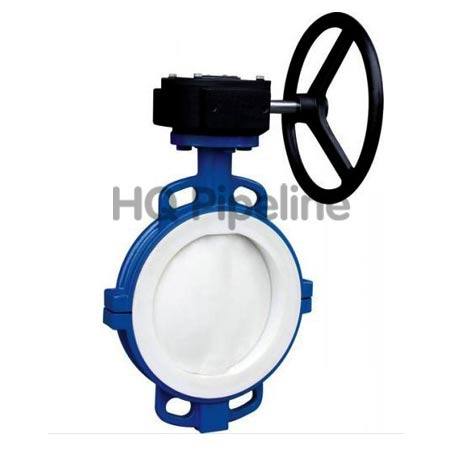

Wafer Type Butterfly Valve with Gear Operator

Wafer Type Butterfly Valve with Gear Operator
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
Wafer Type Butterfly Valve With Gear Operator
Body: Cast iron, Ductile iron
Disc: Ductile iron, stainless steel 304/316, aluminum bronze,
PTFE coating, nylon painting
Sterm: CS, SS416, SS410, SS304, SS431
Seat: NBR, EPDM, PTFE
Pressure: PN10, PN16

Casting iron valves
Type: Butterfly valves, Gate valves, Check valves, Global valves, Y strainer
Size: DN40-1200 or 1.5-48' or above
Working Pressure: PN10/16/20/25, 150LB-2500LB
Suitable temperature: -45c~150c
Standard:
(1)Design and manufacture: DIN3352, BS5163, BS5150, ANSI B16.34, API600, API6D, API609, EN593, GB, T12238
(2)End connection: ANSI B 16.1, ASME B16.5, B16.47, B16.25, B16.34, JISB2212-JISB2214, DIN2543-2550, EN1092, AS2129, ISO 5211
(3)Wall thickness: API600, BS1868
(4)Face to face (end to end): EN 558, ASME B16.10, DIN3202, ISO5752, JIS, API609, MSS, BS5155
(5)Inspection and test: API598, EN12266-1, BS6755, API6D, ISO5208
Materialfor main parts:
(1)Body: CI, DI, WCB, ALB, CF8, CF8M
(2)Disc: DI, ALB, C95400, Rubber lined Disc, 1.2501, 1.4529, CF8M, CF8, Hastelloy
(3)Stem: SS416, SS410, SS304, SS431
(4)Seat: NR, Hypalon, EPDM, Neoprene, NBR, Wear-Resistant EPDM, Viton, Silicon, Heat-Resistant EPDM, WhiteNBR, WhiteEPDM, EPDM(NSF), PTFE
Coating: Fusion bonded epoxy coated
Connection type: Flanged type, Push-on type, Mechanical Joint type, Plain ends type
Sealing: Soft sealing or metal-to-metal seat, Flexible graphite
Operation: Manual, Pheunatic, Electric, Hydraulic and Pnewmatic-Hydraul
Appropriate medium: Air, water, sewage, steam, coal gas, oil
Packaging: Export polywood cases, or as per customers' requirements
Delivery Time: 25 days after order conformed
Payment: By T/T or L/C
Application: Fresh water, sewage, sea water, air, vapor, food, medicine, oils. Acids, alkalis, salt etc.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Industrial Usage
Connection Form: Wafer
Working Temperature: Normal Temperature (',-40??C
Work Pressure: Low Pressure (',Pn<1.6mpa)
Seal Form: Force Sealed
Material Of Seal Surface: Soft Sealed
Structure: Centre Sealing
Qingdao HQ Import & Export Co., Ltd, the export office of HQ Pipeline, which is a professional manufacturer & exporter of all kinds of pipe fittings and valves in China: Forged Steel Pipe Fittings, Flanges, Butt Weld Pipe Fittings, Nipples and Coupling, UL/FM Ductile Iron Grooved Pipe Fittings, Gate Valve, Butterfly Valve, Check Valve, Strainers, Ball Valve...and OEM/ODM service, which are widely used in the field of petroleum, natural gas, ship building, metallurgy, electric power, chemical industries, fire protection etc.

HQ Pipeline plants are well equipped with advanced production and inspection equipments: 600T Intermediate frequency push-type forming machine, 3500T Hydraulic-pressure machine, 1/5/8tons forging hammer, air forging hammer, high precision machine tools, electrical heating furnaces, heat treatment furnaces, PMI detection equipment, tensile machines, impact testers, hardness testers, metallographic analyzers, digital UT flaw detectors, etc. And also equipped with skilled workers, several engineers.

Through continuous input of R&D, HQ Pipeline strives to technical innovation, and develops new products constantly, provide OEM/ODM service for non-standard products according to customer's drawings or samples.

With maintaining the Total Quality Management (TQM) by Quality Control Section, all products are subject to pass strict inspection at each stage of the production process, from starting material handling to finished product shipping. For years, HQ Pipeline plants have been successively qualified to produce pressure pipeline unit, honored with "Nationwide Quality Credit AAA Brand Enterprise" and "Contract abiding company", certified with ISO9001-2008.

Years of professional pipeline production technics and rich experience, strictly quality control and assurance, years of export experience, reputed pre-sale and after-sale service, continuous development and improvement, we believe that HQ will be your premier partner. We welcome your visit, and look forward to committed to meet your any need for the pipeline products.
