Wafer Type Butterfly Valve

Wafer Type Butterfly Valve
Price: US $ 6.53/Set
Trade Terms: FOB,CFR,CIF
Min Order: 10/Set
Pay Type: L/C,T/T

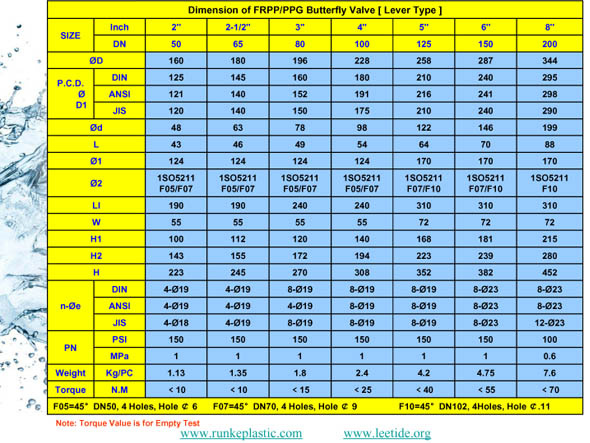

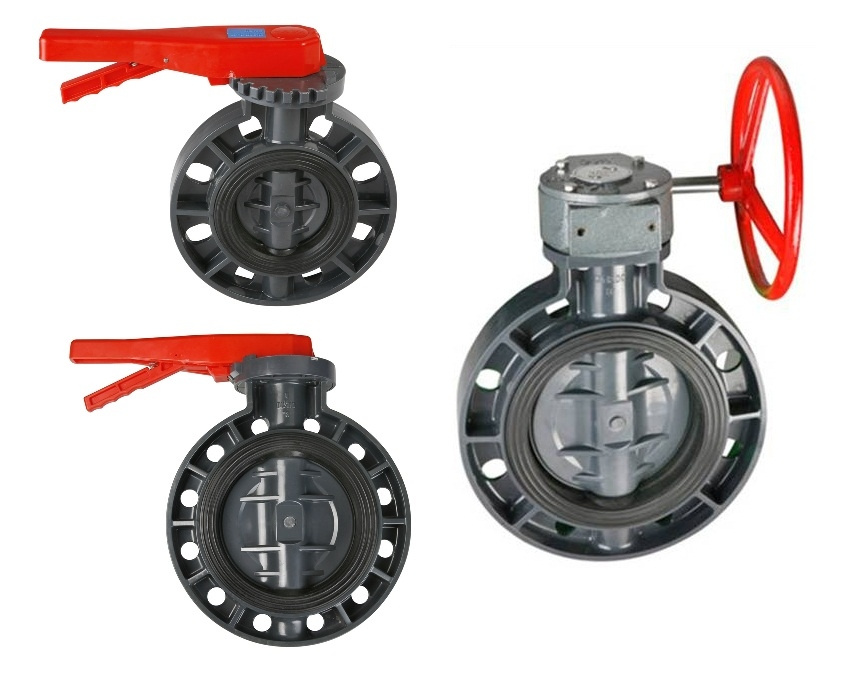

  PVC FRPP Butterfly Valve with DIN, ANSI, JIS, CNS Standard From DN50-DN300 ( 2"-- 12" )


Prod Model: DN50-DN400 DIN ANSI JIS Standard
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PVC Butterfly Valve JIS Standard: Dn50-Dn300
PVC Butterfly Valve DIN Standard: 63mm-315mm
PVC Butterfly Valve ANSI Standard: 2"-- 12"
FRPP Butterfly Valve: DIN ANSI JIS Standard

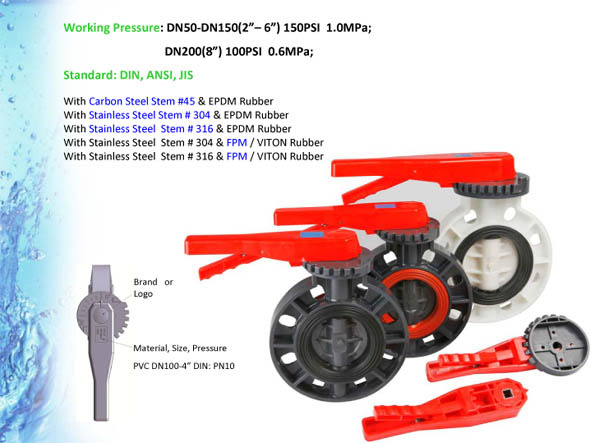

Carbon Steel Stem #45: EPDM Rubber
Stainless Steel Stem #304: EPDM Rubber
Stainless Steel Stem #316: EPDM Rubber
Stainless Steel Stem 316#: Viton / FPM Rubber
Connection Form: Flange
Work Pressure: Low Pressure (',Pn<1.6mpa)
Structure: Centre Sealing
Seal Form: Auto Sealed
Working Temperature: Normal Temperature (',-40??C
Application: Swiming Pool
Material Of Seal Surface: Soft Sealed
Valve Body: Mould
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce

PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;

PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.

PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;

PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;

PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;

HDPE Fittings for Water Supply SDR11 & SDR17

PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;

SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;

HDPE Inspection Chamber
